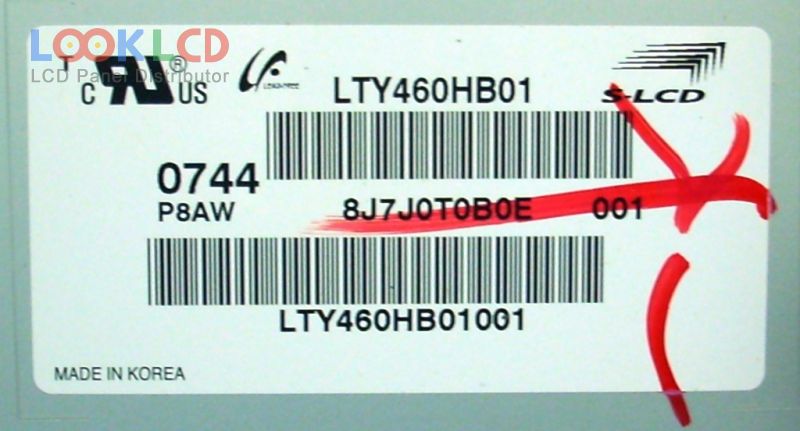

| Varenummer | LTY460HB01 |
| Mærke | Samsung |
| Størrelse | 46 |
| Ansøgning | LCTV |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 550 |
| CR | 1700:1 |
| Farver | 1.07B |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | S-LCD |
| panel model | LTY460HB01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 46 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | S-PVA, Normally Black, Transmissive |
| aktivt område | 1018.08×572.67 mm |
| omrids | 1083×627 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 550 cd/m² (Typ.) |
| kontrastforhold | 1700:1 (Typ.) |
| vise farver | 1.07B (10-bit), CIE193190% |
| responstid | 10/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 24 pcsCCFLEmbedded (Balance board) |
| signal interface | LVDS (2 ch, 10-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
