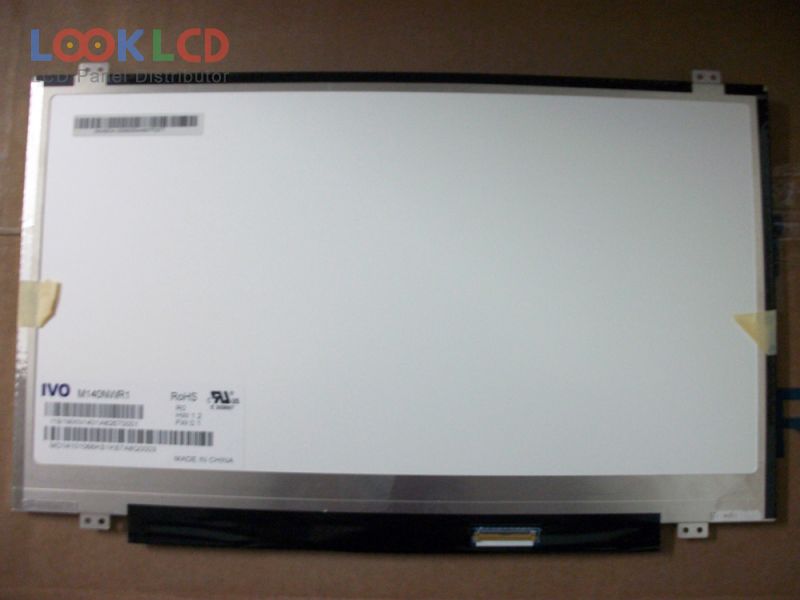

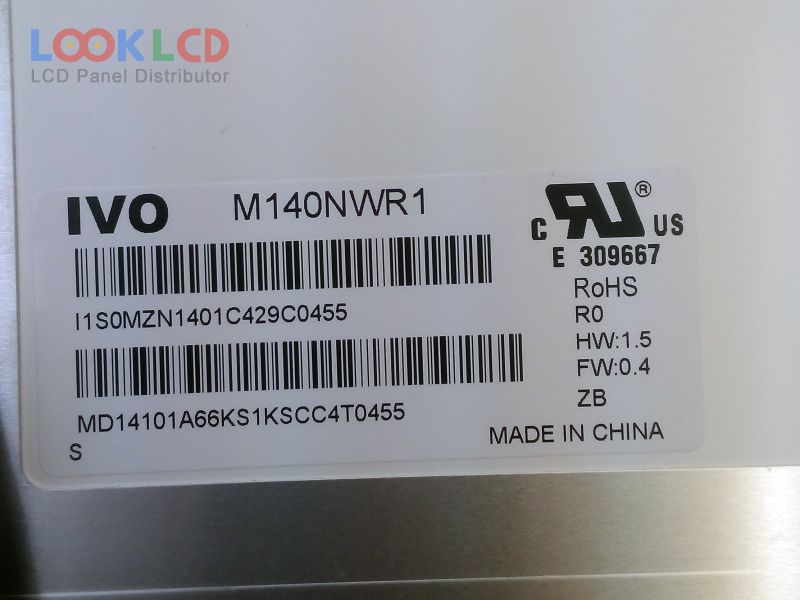

| Varenummer | M140NWR1 R0 |
| Mærke | IVO |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | IVO |
| panel model | M140NWR1 R0 6 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 320.9×205.6×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%), Hard coating |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

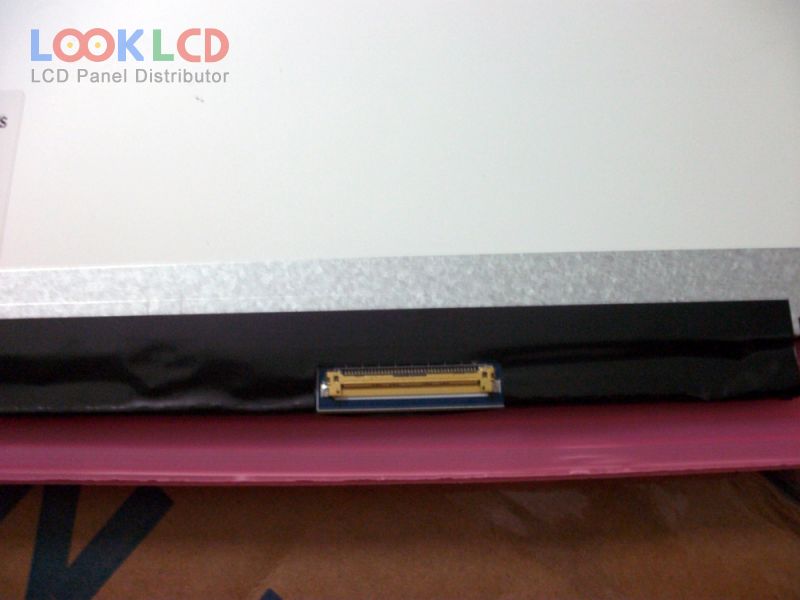

| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP140WD1-TLA1 | LG Display | 14.0 | 1600×900 |
| LP140WH1-TPD1 | LG Display | 14.0 | 1366×768 |
| LP140WH8-TLA1 | LG Display | 14.0 | 1366×768 |
| LTN140AT20-T01 | Samsung | 14.0 | 1366×768 |
| LTN140HL02-201 | Samsung | 14.0 | 1920×1080 |
| M140NWR1 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R1 | IVO | 14.0 | 1366×768 |
| M140NWR2 R2 | IVO | 14.0 | 1366×768 |
| M140NWR4 R2 | IVO | 14.0 | 1366×768 |
| B141XN01 V0 | AUO | 14.1 | 1024×768 |
| LP133WX2-TLD1 | LG Display | 13.3 | 1280×800 |
| LP141WP2-TLA1 | LG Display | 14.1 | 1440×900 |
| LP141WX3-TLA3 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLN1 | LG Display | 14.1 | 1280×800 |
| LP171WP7-TLB1 | LG Display | 17.1 | 1440×900 |
| LQ121X3LH01 | SHARP | 12.1 | 1024×768 |
| LTN141AT15-001 | Samsung | 14.1 | 1280×800 |
| N140B6-L01 | Innolux | 14.0 | 1366×768 |
| N150P5-L02 | Innolux | 15.0 | 1400×1050 |
