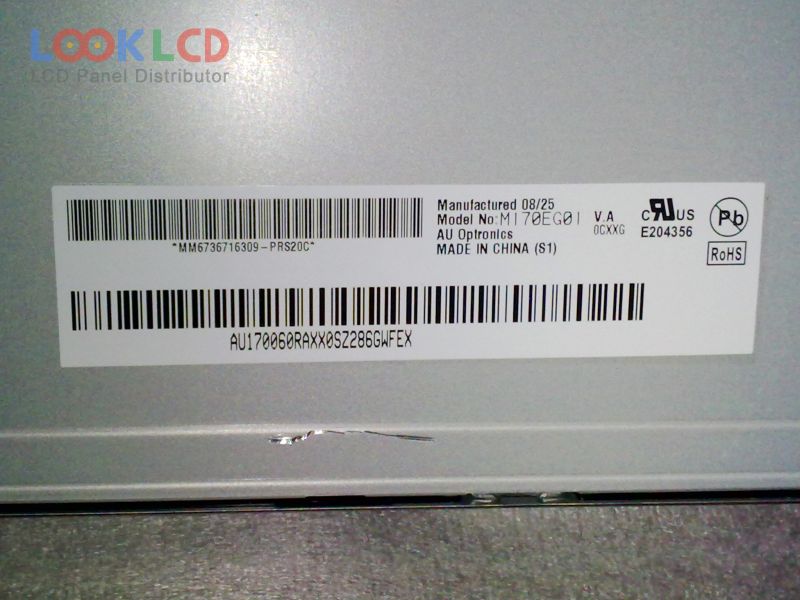

| Varenummer | M170EG01 VA |
| Mærke | AUO |
| Størrelse | 17.0 |
| Ansøgning | DMPC |
| Løsning | 1280×1024 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 700:1 |
| Farver | 16.2M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | M170EG01 VA 4 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1280(RGB)×1024 , SXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 337.92×270.336 mm |
| omrids | 358.5×296.5×17.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193172% |
| responstid | 6/2 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
