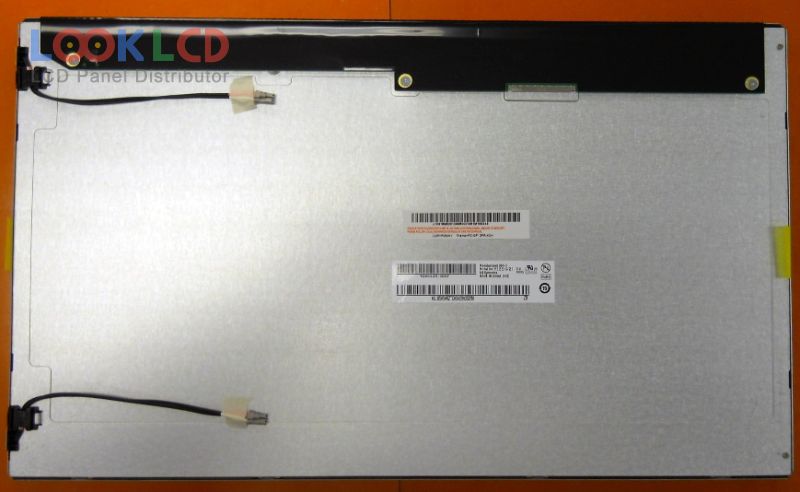

| Varenummer | M185XW01 V4 |
| Mærke | AUO |
| Størrelse | 18.5 |
| Ansøgning | DMPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | M185XW01 V4 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 18.5 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 409.8×230.4 mm |
| omrids | 430.37×254.6×16.5 mm |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193172% |
| responstid | 3.6/1.4 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
