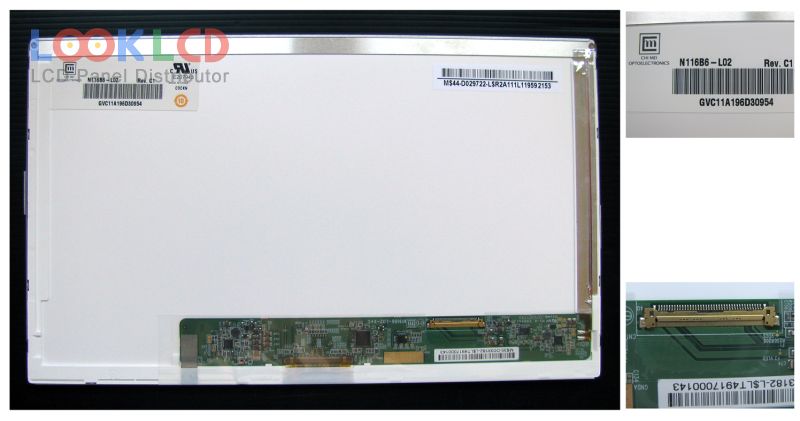

| Varenummer | N116B6-L02 |
| Mærke | Innolux |
| Størrelse | 11.6 |
| Ansøgning | NOPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | N116B6-L02 7 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 11.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 256.125×144 mm |
| omrids | 268×161.5×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S3PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NOPC |
| N116B6-L02 | Innolux | 11.6 | 1366×768 |
| N116B6-L04 | Innolux | 11.6 | 1366×768 |
| N116B6-L07 | Innolux | 11.6 | 1366×768 |
| N116BGE-EA2 | Innolux | 11.6 | 1366×768 |
| N116BGE-EB2 Rec.C3 | Innolux | 11.6 | 1366×768 |
| N116BGE-L11 | Innolux | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| N116BGE-L42 | Innolux | 11.6 | 1366×768 |
| N116BGE-LB1 | Innolux | 11.6 | 1366×768 |
| B089AW01 V1 | AUO | 8.9 | 1024×600 |
| B101AW03 V0 | AUO | 10.1 | 1024×600 |
| BT101IW04 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA101NC05 | CPT | 10.1 | 1024×600 |
| HT089WX1-100 | HYDIS | 8.9 | 1280×768 |
| LP101WSA-TLB1 | LG Display | 10.1 | 1024×600 |
| LS075AT011 | Innolux | 7.5 | 1200×900 |
| LTN101NT06-W03 | Samsung | 10.1 | 1024×600 |
| LTN116AT01-801 | Samsung | 11.6 | 1366×768 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
