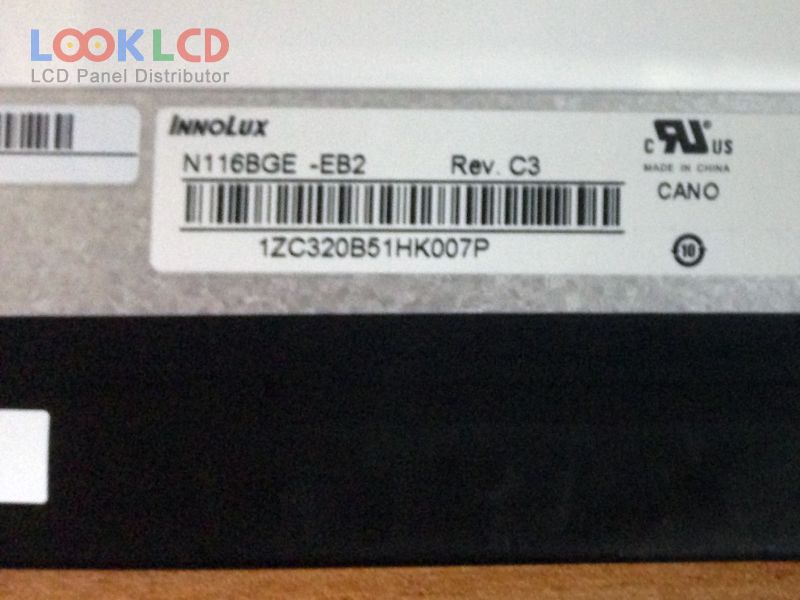

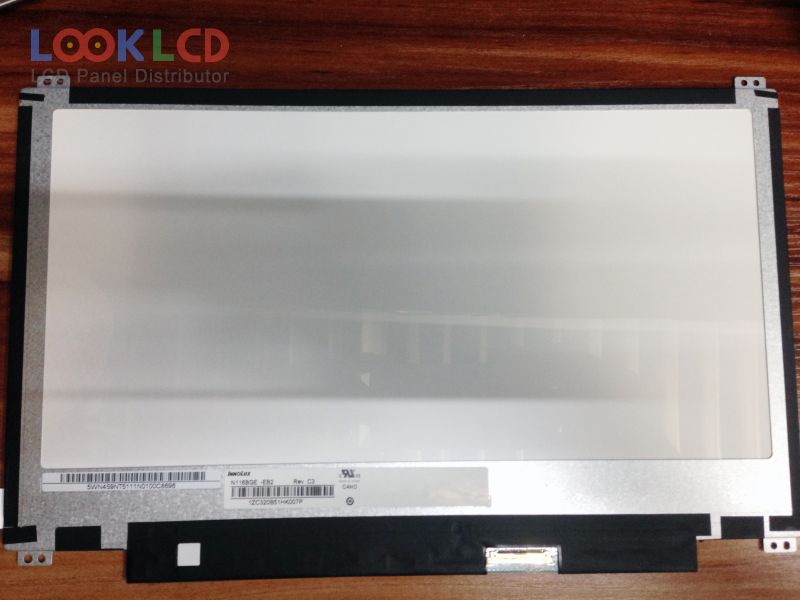

| Varenummer | N116BGE-EB2 Rec.C3 |
| Mærke | Innolux |
| Størrelse | 11.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | INNOLUX |
| panel model | N116BGE-EB2 Rec.C3 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 11.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 256.125×144 mm |
| omrids | 268×157.5×3 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | eDP (1 Lane), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| A116XW02 V0 | AUO | 11.6 | 1366×768 |
| B116AW02 V0 | AUO | 11.6 | 1024×600 |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| B116XAN03.0 HW3A | AUO | 11.6 | 1366×768 |
| B116XAN03.1 HW1A | AUO | 11.6 | 1366×768 |
| B116XTT01.1 | AUO | 11.6 | 1366×768 |
| M116NWR1 R1 | IVO | 11.6 | 1366×768 |
| N116BGE-EA2 | Innolux | 11.6 | 1366×768 |
| N116BGE-EB2 Rec.C3 | Innolux | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| B141EW05 V5 | AUO | 14.1 | 1280×800 |
| LP141WXV-SLA2 | LG Display | 14.1 | 1280×800 |
| LP150X08-A3 | LG Display | 15.0 | 1024×768 |
| LP150X08-TLAC | LG Display | 15.0 | 1024×768 |
| LTN156AT02 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| N121I2-L01 | Innolux | 12.1 | 1280×800 |
| N156B6-L07 | Innolux | 15.6 | 1366×768 |
| NT116WHM-N22 | BOE | 11.6 | 1366×768 |
