| Varenummer | N140BGE-L31 |
| Mærke | Innolux |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CHIMEI INNOLUX |
| panel model | N140BGE-L31 7 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 320.4×205.1×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 3/8 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

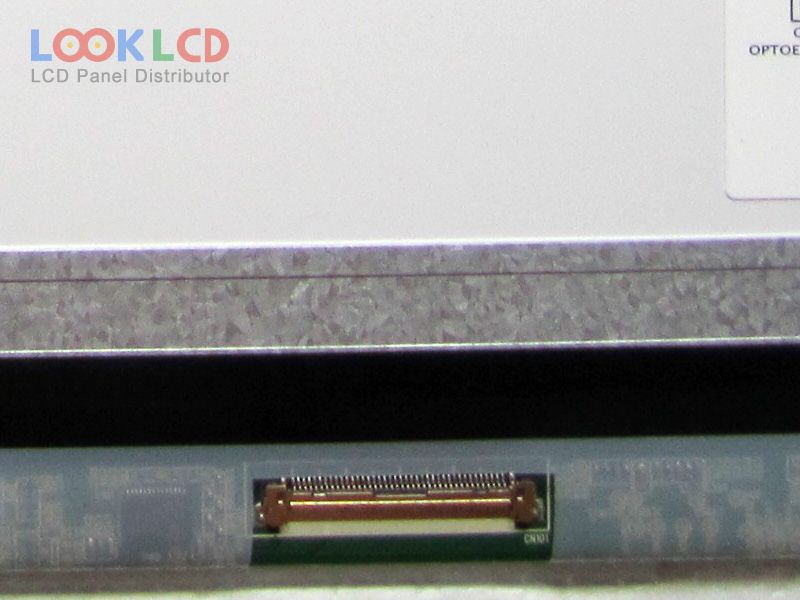

| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-L12 | Innolux | 14.0 | 1366×768 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
| N140BGE-L42 | Innolux | 14.0 | 1366×768 |
| N140BGK-L33 | Innolux | 14.0 | 1366×768 |
| B141EW04 V7 | AUO | 14.1 | 1280×800 |
| LP140WH2-TLL1 | LG Display | 14.0 | 1366×768 |
| LP154W02-B1K6 | LG Display | 15.4 | 1680×1050 |
| LP154WX7-TLB1 | LG Display | 15.4 | 1280×800 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LTD121EWRF | TOSHIBA | 12.1 | 1280×800 |
| LTN141AT09-101 | Samsung | 14.1 | 1280×800 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
