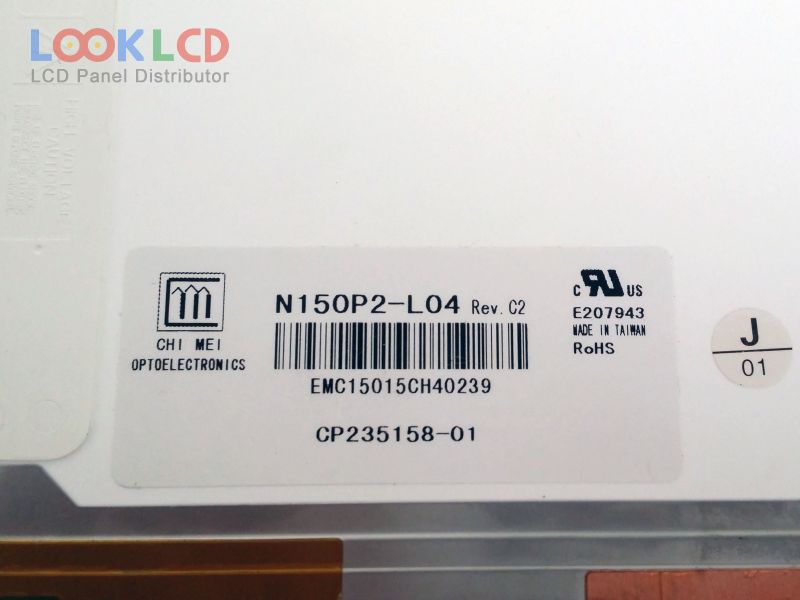

| Varenummer | N150P2-L04 |
| Mærke | IDTech |
| Størrelse | 15.0 |
| Ansøgning | NBPC |
| Løsning | 1400×1050 |
| Sammensætning | LCM |
| Lysstyrke | 185 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | IDTech |
| panel model | N150P2-L04 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1400(RGB)×1050 , SXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.5×228.375 mm |
| omrids | 317.3×242×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | |
| lysstyrke | 185 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 45/45 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
