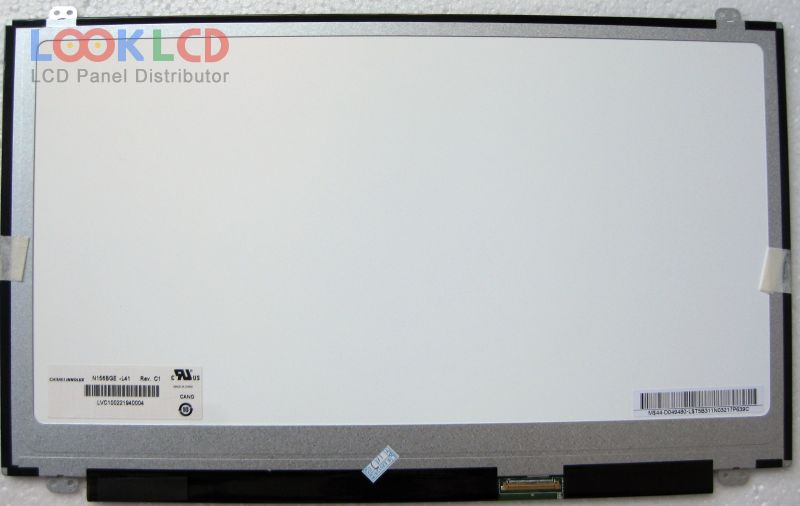

| Varenummer | N156BGE-L41 |
| Mærke | Innolux |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 650:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |

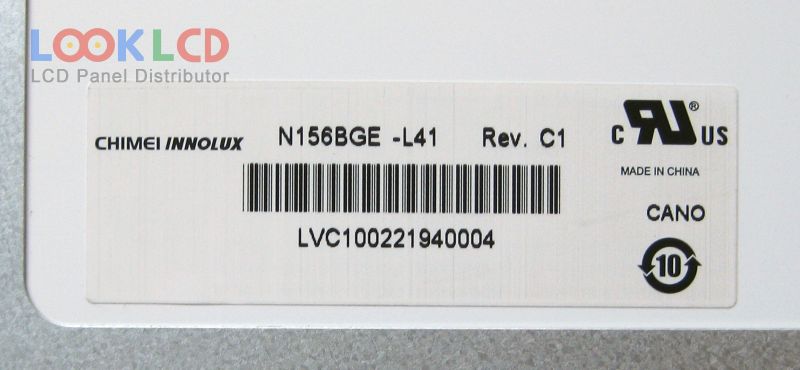

| panel mærke | CHIMEI INNOLUX |
| panel model | N156BGE-L41 21 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.5×223.8×3.8 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 650:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

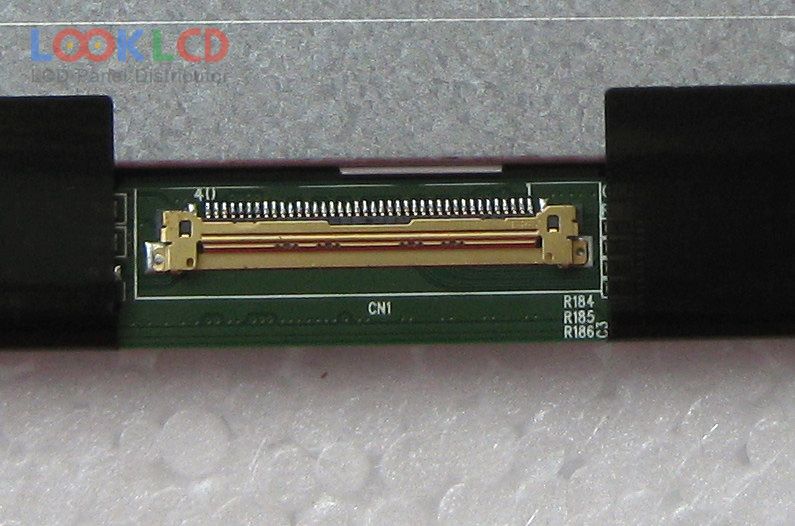

| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| N156B3-L0A | Innolux | 15.6 | 1366×768 |
| N156B3-L0B | Innolux | 15.6 | 1366×768 |
| N156B6-L04 | Innolux | 15.6 | 1366×768 |
| N156B6-L06 | Innolux | 15.6 | 1366×768 |
| N156B6-L07 | Innolux | 15.6 | 1366×768 |
| N156B6-L3D | Innolux | 15.6 | 1366×768 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
| N156BGE-EB1 | Innolux | 15.6 | 1366×768 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
| N156BGE-L41 | Innolux | 15.6 | 1366×768 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| LP154WX5-TLC2 | LG Display | 15.4 | 1280×800 |
| LP173WD1-TLD3 | LG Display | 17.3 | 1600×900 |
| LQ140Z1JW01 | SHARP | 14.0 | 3200×1800 |
| LTN133AT17-H01 | Samsung | 13.3 | 1366×768 |
| LTN140AT06-A01 | Samsung | 14.0 | 1366×768 |
| LTN170WA-L01 | Samsung | 17.0 | 1440×900 |
| N140BGE-L41 | Innolux | 14.0 | 1366×768 |
| N141C1-L02 | Innolux | 14.1 | 1440×900 |
| N150X3-L09 | Innolux | 15.0 | 1024×768 |
