| Varenummer | NE173FHM-NZ1 |
| Mærke | BOE |
| Størrelse | 17.3 |
| Ansøgning | Laptop Gaming |
| Løsning | 1920×1080 |
| Sammensætning | Oxide TFT-LCD, LCM |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | 10S6P |
| Interface | eDP |
| panel mærke | BOE |
| panel model | NE173FHM-NZ1 (BOE0884) |
| panelstørrelse | 17.3" |
| paneltype | Oxide TFT-LCD, LCM |
| løsning | 1920(RGB)×1080, FHD, 127PPI |
| pixel format | RGB Vertical Stripe |
| udstillingsområde | 381.888(W)×214.812(H) mm |
| bezel åbning | - |
| konturstørrelse | 389.89(W)×238.31(H) ×3.5(D) mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) (TM) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| visningstilstand | ADS, Normally Black, Transmissive |
| bedste udsigt på | Symmetry |
| responstid | 4 (Typ.)(G to G) |
| vise farver | 16.7M 100% sRGB |
| lampe type | 10S6P WLED , 15K hours , With LED Driver |
| frekvens | 240Hz |
| berøringsskærm | Without |
| form stil | Slim (PCBA Flat, T≤3.2mm) |
| Ansøgning | Laptop Gaming |

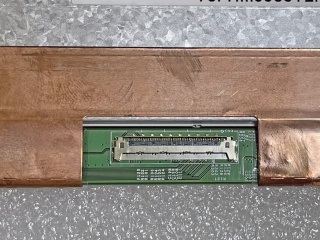

| signal interface | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| indgangsspænding | 3.3V (Typ.) |
| miljø | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HW01 V4 | AUO | 17.3 | 1920×1080 |
| G173HW01 V0 | AUO | 17.3 | 1920×1080 |
| LP173WF1-TLB3 | LG Display | 17.3 | 1920×1080 |
| LP173WF3-SLB1 | LG Display | 17.3 | 1920×1080 |
| LP173WF4-SPD1 | LG Display | 17.3 | 1920×1080 |
| LTN173HT02-D02 | Samsung | 17.3 | 1920×1080 |
| N173FGE-L21 | Innolux | 17.3 | 1600×900 |
| N173HCE-E31 | Innolux | 17.3 | 1920×1080 |
| N173HGE-L11 | Innolux | 17.3 | 1920×1080 |
