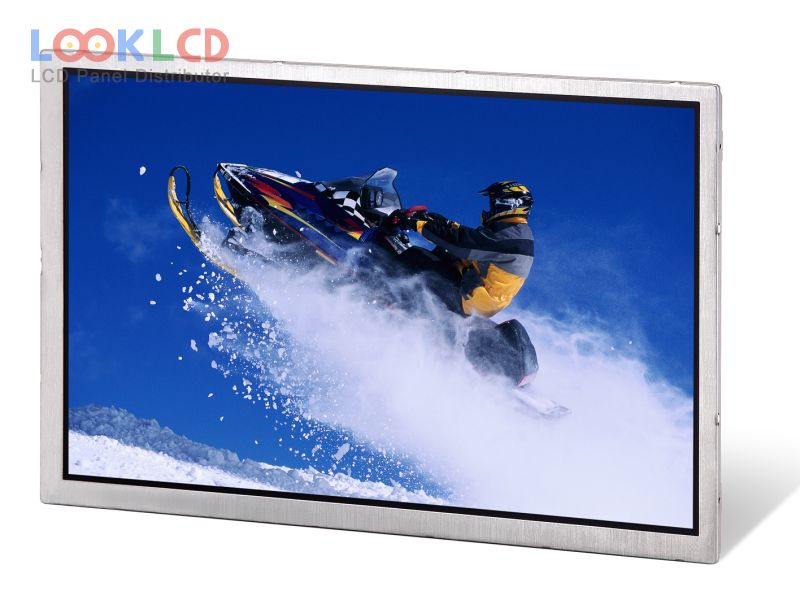

| Varenummer | NL12876AC18-03D |
| Mærke | NLT |
| Størrelse | 10.6 |
| Ansøgning | IA |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 1000:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL12876AC18-03D |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.6 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | UA-SFT, Normally Black, Transmissive |
| aktivt område | 230.4×138.24 mm |
| omrids | 248.8×155.8×7 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 8-bit), CIE193140% |
| responstid | 13/12 (Typ.)(Tr/Td) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6/8-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
