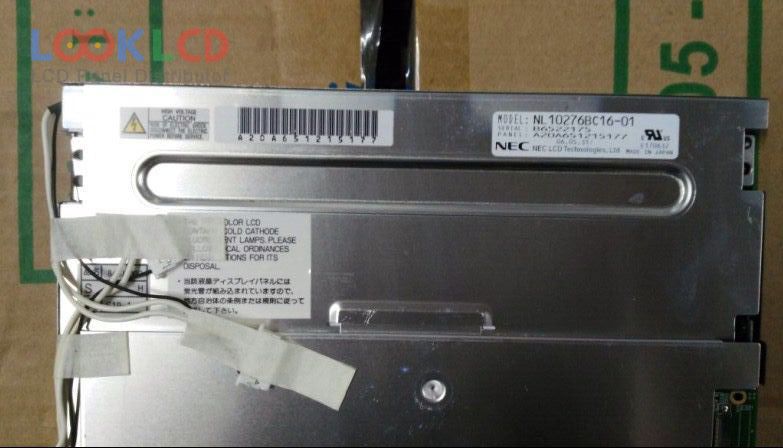

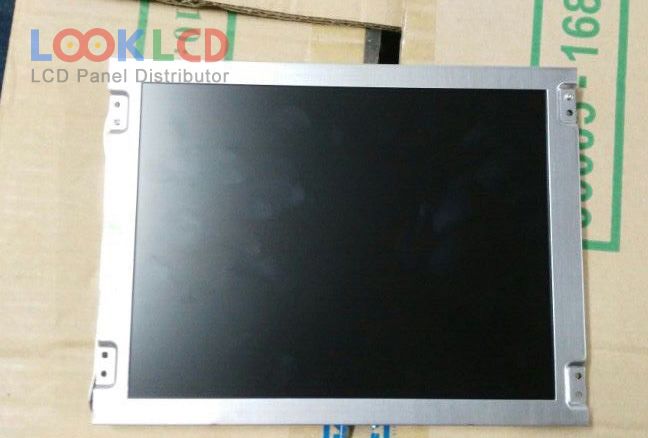

| Varenummer | NL10276BC16-01 |
| Mærke | NLT |
| Størrelse | 8.4 |
| Ansøgning | IA |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 400:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL10276BC16-01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.4 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | UA-SFT, Normally Black, Transmissive |
| aktivt område | 170.496×127.872 mm |
| omrids | 200×152 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| responstid | 13/12 (Typ.)(Tr/Td) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
