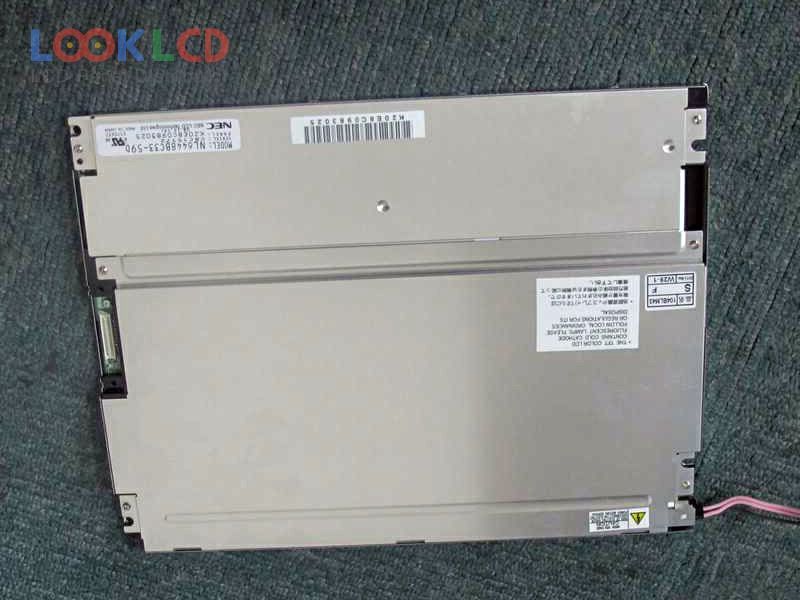

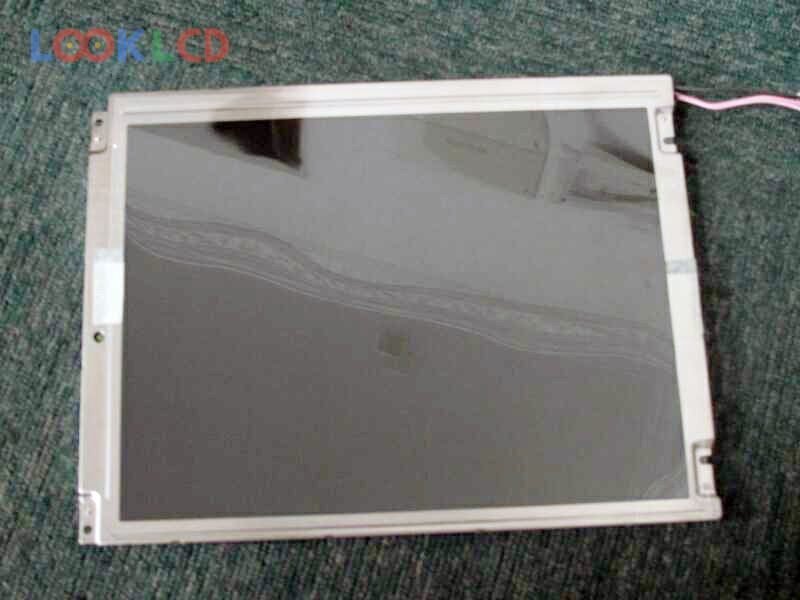

| Varenummer | NL6448BC33-59D |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL6448BC33-59D 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×185.1×11 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193143% |
| responstid | 8/25 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| indgangsspænding | 3.3/5.0V (Typ.) |
| Ansøgning | IA |
| NL6448BC18-01 | NLT | 5.7 | 640×480 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| NL6448BC26-15 | NLT | 8.4 | 640×480 |
| NL6448BC26-27 | NLT | 8.4 | 640×480 |
| NL6448BC33-20 | NLT | 10.4 | 640×480 |
| NL6448BC33-46 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| NL6448BC33-64E | NLT | 10.4 | 640×480 |
| EL160.80.50 ALU | PLANAR | 3.5 | 160×80 |
| G158ETN01.0 | AUO | 15.8 | |
| G190EG01 V0 | AUO | 19.0 | 1280×1024 |
| HGS128641-Y-EH-LV | Other | 2.7 | 128×64 |
| LQ104V1DG21 | SHARP | 10.4 | 640×480 |
| LTA121C250F | TOSHIBA | 12.1 | 1024×768 |
| LTD121C33S | TOSHIBA | 12.1 | 800×600 |
| NL6448BC33-64R | NLT | 10.4 | 640×480 |
| TM084SDHG03 | Tianma | 8.4 | 800×600 |
| TM084SDHG50 | Tianma | 8.4 | 800×600 |
