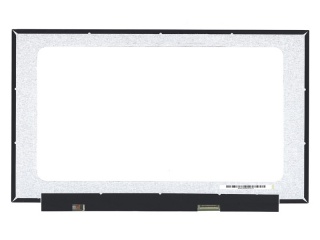

| Varenummer | NT156FHM-N62 |
| Mærke | BOE |
| Størrelse | 15.6 |
| Ansøgning | Laptop |
| Løsning | 1920×1080 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | 9S4P |
| Interface | eDP |
| fabrikant | BOE |
| skærmstørrelse | 15.6 inch |
| pixel antal | 1920(RGB)×1080 (FHD) 141PPI |
| aktivt område (mm) | 344.16 × 193.59 (H×V) |
| rammeareal (mm) | - |
| luminans | 220 cd/m² (Typ.) |
| synsvinkel | 45/45/20/40 (Typ.)(CR≥10) |
| god udsigt kl | 6 o'clock |
| farvedybde | 262K 45% NTSC |
| konturform | Slim (PCBA Flat, T≤3.2mm) |
| opdateringshastighed | 60Hz |
| signaltype | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnavn | NT156FHM-N62 (BOE07F1) |
| skærmtype | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| omrids (mm) | 350.66 × 216.25 × 3.2 (H×V×D) |
| behandling | Antiglare, Hard coating (3H) |
| kontrastforhold | 500 : 1 (Typ.) (TM) |
| respons | 12 (Typ.)(Tr+Td) ms |
| arbejdstilstand | TN, Normally White, Transmissive |
| baggrundsbelysning | 9S4P WLED , 15K hours , With LED Driver |
| anvendes til | Laptop |
| berøringsskærm | Without |
