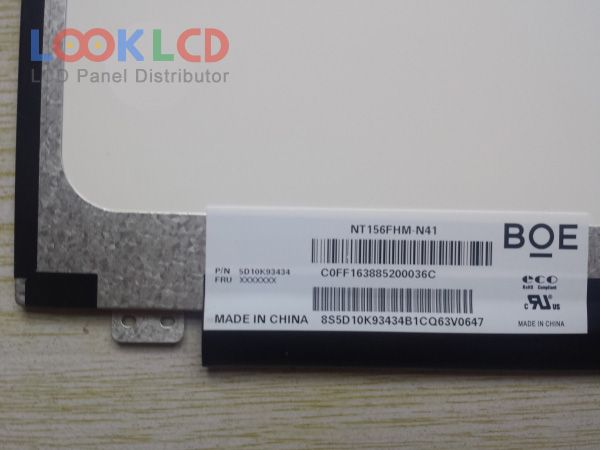

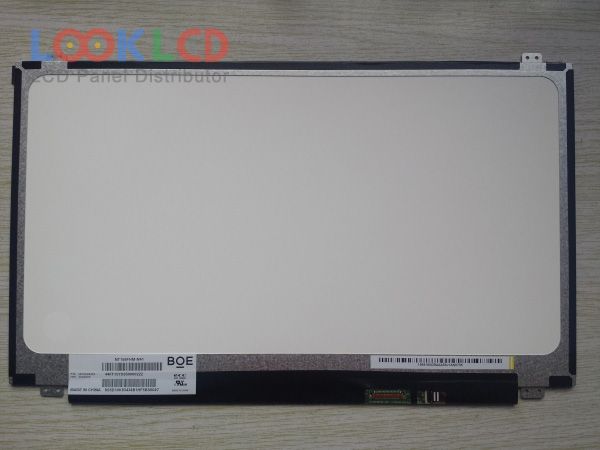

| Varenummer | NT156FHM-N41 |
| Mærke | BOE |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | BOE |
| panel model | NT156FHM-N41 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 334.16×193.59 mm |
| omrids | 359.5×223.8×3.2 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Antiglare |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 12 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

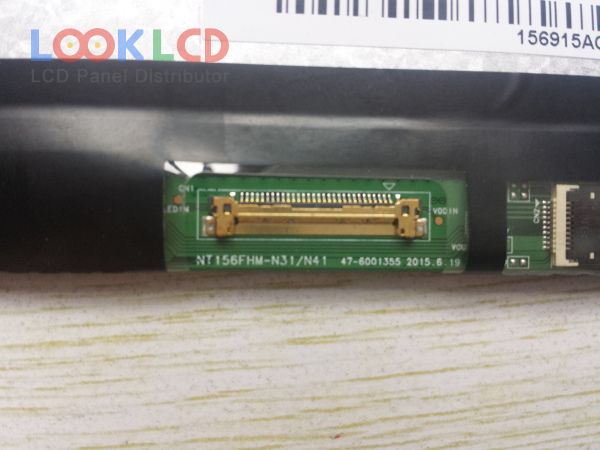

| signal interface | eDP (2 Lanes), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WHB-TPA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-V01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D04 | Samsung | 15.6 | 1366×768 |
| LTN156AT30-B02 | Samsung | 15.6 | 1366×768 |
| NT156FHM-N41 | BOE | 15.6 | 1920×1080 |
| B133EW04 V0 | AUO | 13.3 | 1280×800 |
| B156HW01 V0 | AUO | 15.6 | 1920×1080 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| LP133WX3-TLA2 | LG Display | 13.3 | 1280×800 |
| LP154WX5-TLB2 | LG Display | 15.4 | 1280×800 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LQ164M1LG4B | SHARP | 16.4 | 1920×1080 |
| LTD121EX1S | TOSHIBA | 12.1 | 1280×768 |
| LTN121AT04-001 | Samsung | 12.1 | 1280×800 |
| LTN141AT09-101 | Samsung | 14.1 | 1280×800 |
