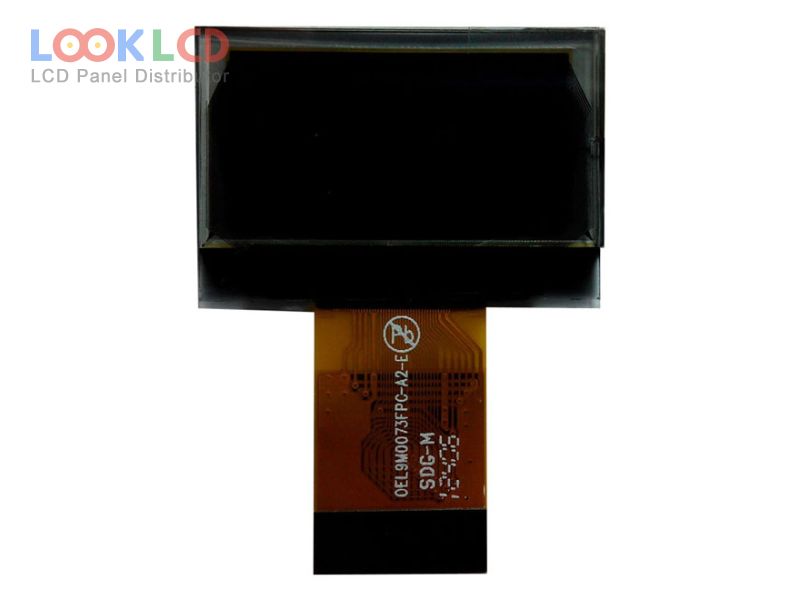

| Varenummer | OEL9M0073-B-E |
| Mærke | Other |
| Størrelse | 1.0 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | |
| CR | 10000:1 |
| Farver | Mono(Blue) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | TRULY |
| panel model | OEL9M0073-B-E |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 1.0 inch |
| løsning | 128×64 |
| aktivt område | 23.02×11.82 mm |
| omrids | 30×20.16×1.6 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | 10000 : 1 (Min.) |
| vise farver | Mono(Blue) (1-bit) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| driver ic | COG Built-in SSD1308Z |
| signal interface | CPU/SPI/I²C, 24 pins |
| Ansøgning | IA |
