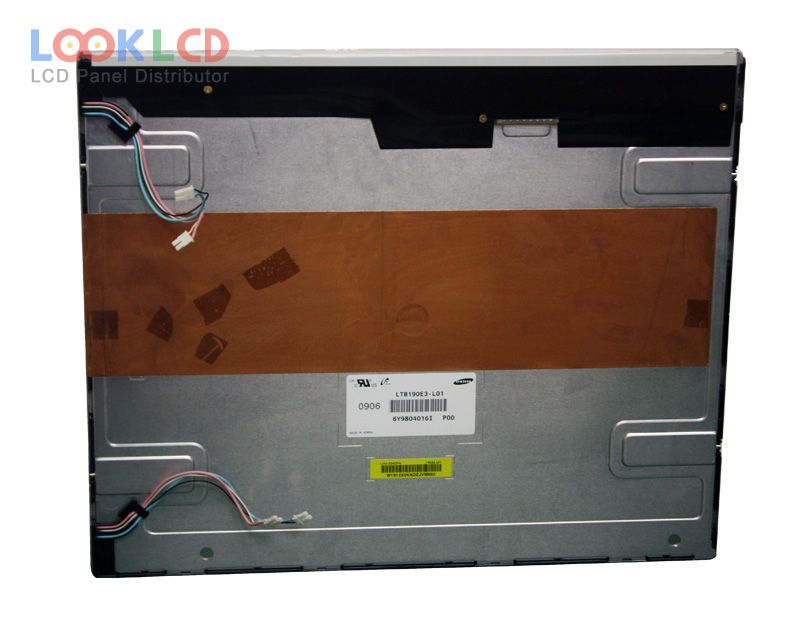

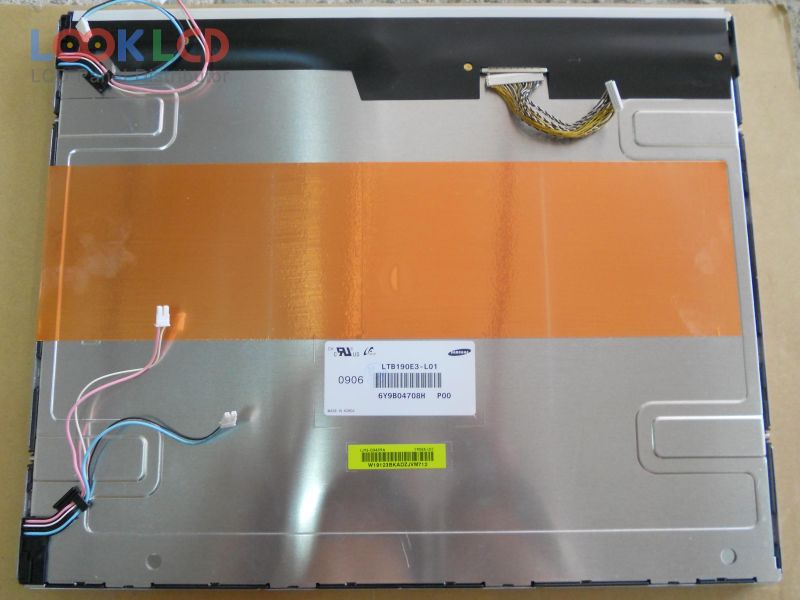

| Varenummer | LTB190E3-L01 |
| Mærke | Samsung |
| Størrelse | 19.0 |
| Ansøgning | IA |
| Løsning | 1280×1024 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTB190E3-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 19.0 inch |
| løsning | 1280(RGB)×1024 , SXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 376.32×301.056 mm |
| omrids | 396×324×17 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 1.7/6.3 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | IA |
