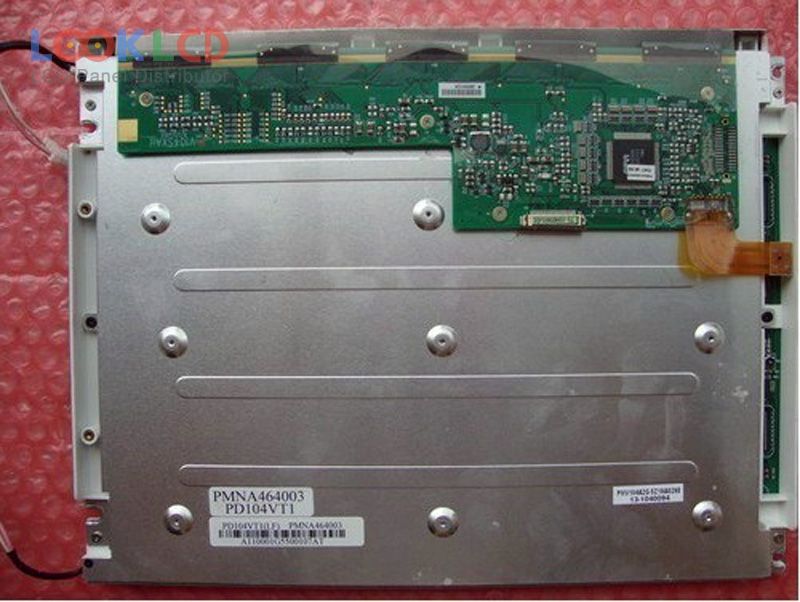

| Varenummer | PD104VT1 |
| Mærke | E Ink |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 330 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | PVI |
| panel model | PD104VT1 3 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×185.1×13 mm |
| overflade | Antiglare |
| lysstyrke | 330 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/25 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/15/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | IA |
| LQ104S1DG34 | SHARP | 10.4 | 800×600 |
| PD104SL3 | E Ink | 10.4 | 800×600 |
| PD104SL5 | E Ink | 10.4 | 800×600 |
| PD104SL7 | E Ink | 10.4 | 800×600 |
| PD104SLD | E Ink | 10.4 | 800×600 |
| PD104SLG | E Ink | 10.4 | 800×600 |
| PD104VT1 | E Ink | 10.4 | 640×480 |
| PD104VT3 | E Ink | 10.4 | 640×480 |
| PD104VT3H1 | E Ink | 10.4 | 640×480 |
| TM104SBH01 | Tianma | 10.4 | 800×600 |
| EL320.256-FD6 | Lumineq | 4.8 | 320×256 |
| EL640.400-C3 FRA | Lumineq | 9.1 | 640×400 |
| G104SN02 V2 | AUO | 10.4 | 800×600 |
| LQ9D01C | SHARP | 8.4 | 640×480 |
| NL3224AC35-10 | NLT | 5.5 | 320×240 |
| NL6448BC20-20 | NLT | 6.5 | 640×480 |
| NL8060BC31-01 | NLT | 12.1 | 800×600 |
| TX16D11VM2CCA | KOE | 6.2 | 640×240 |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-9639TLBEG03 | WiseChip | 0.82 | 96×39 |
