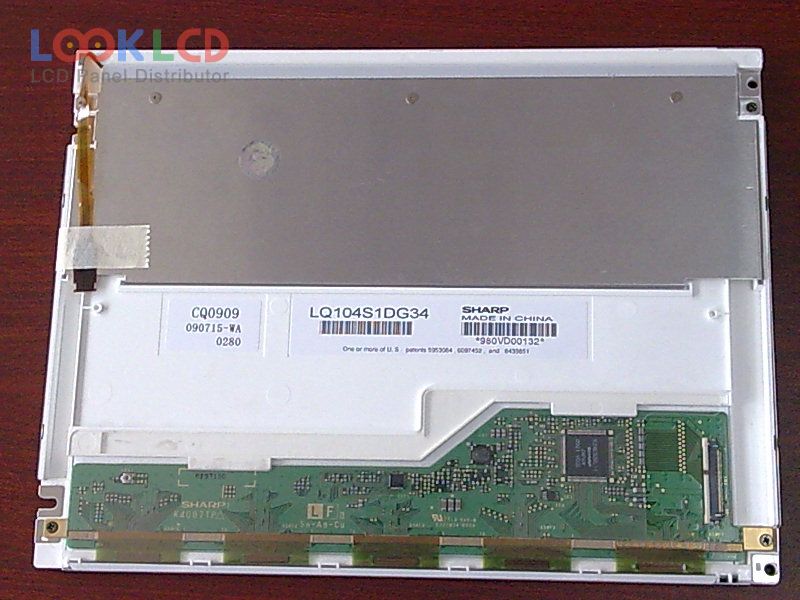

| Varenummer | LQ104S1DG34 |
| Mærke | SHARP |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ104S1DG34 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×183.8×9.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 10/25 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 10S3PWLEDWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
