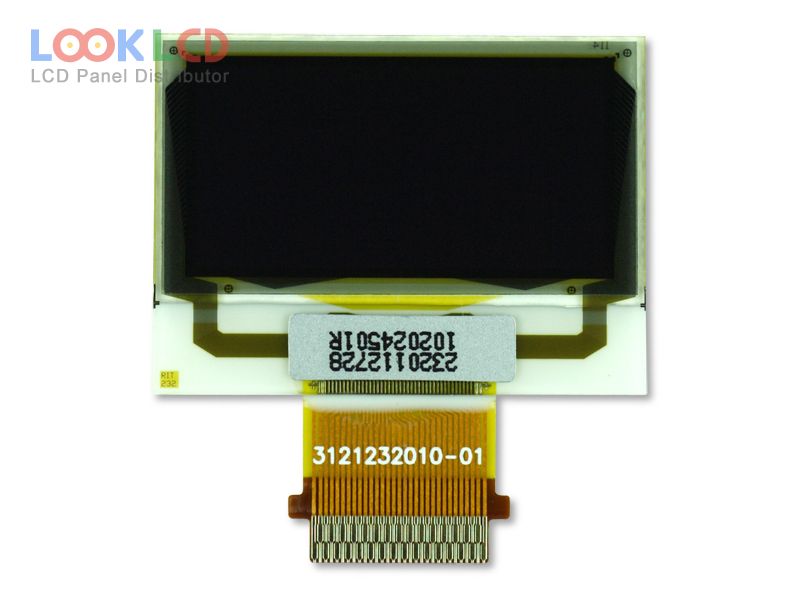

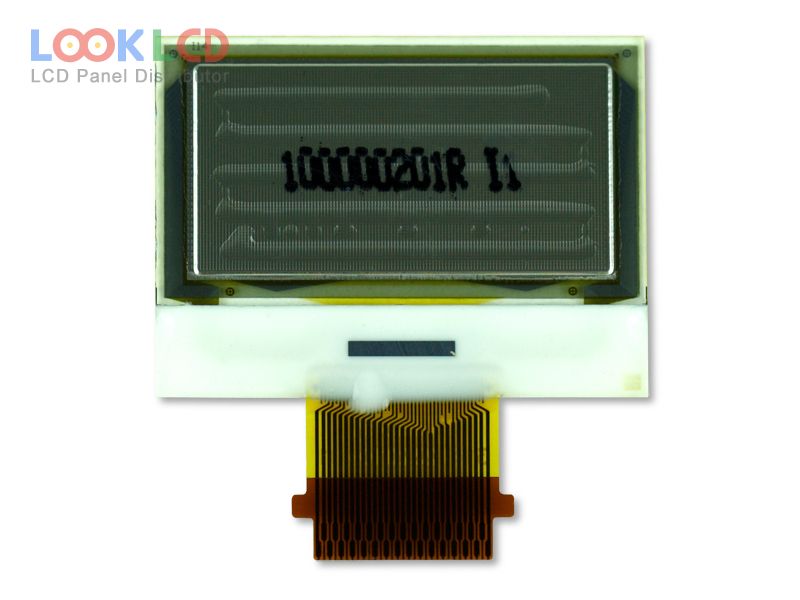

| Varenummer | RGS10128064WR010 |
| Mærke | RiTdisplay |
| Størrelse | 0.96 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | 100 |
| CR | 2000:1 |
| Farver | Mono(White) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | RiTdisplay |
| panel model | RGS10128064WR010 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 0.96 inch |
| løsning | 128×64 |
| aktivt område | 21.74×10.86 mm |
| omrids | 26.4×19.7×1.36 mm |
| overflade | Antiglare |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 2000 : 1 (Min.) |
| vise farver | Mono(White) (1-bit) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 105Hz |
| driver ic | COG Built-in SEPS200A |
| signal interface | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| indgangsspænding | 12/2.8V (Typ.)(VCC/VDD) |
| Ansøgning | IA |
