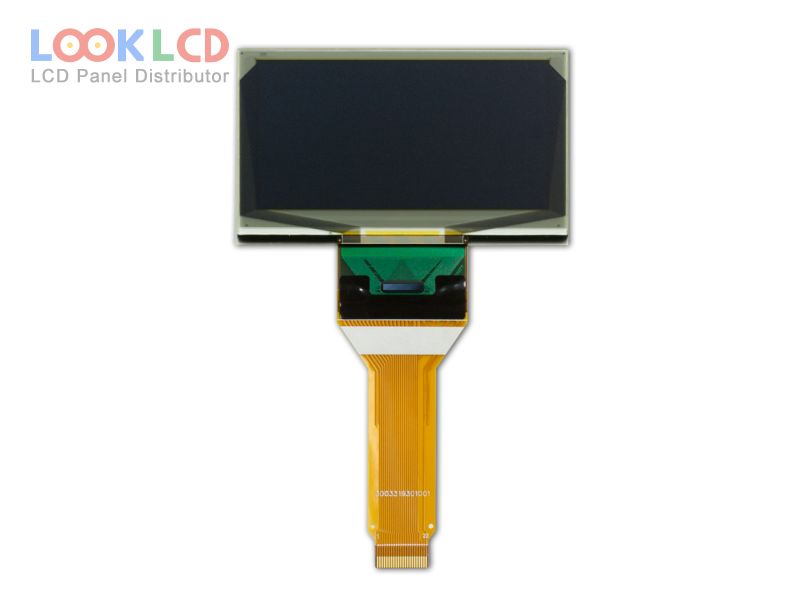

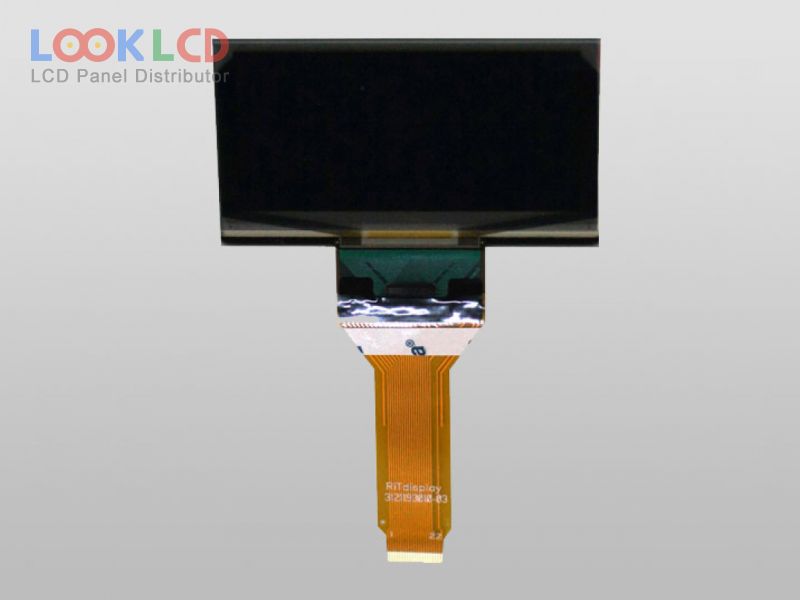

| Varenummer | RGS27128064YW000 |
| Mærke | RiTdisplay |
| Størrelse | 2.7 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | 100 |
| CR | 2000:1 |
| Farver | Mono(Yellow) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | RiTdisplay |
| panel model | RGS27128064YW000 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 2.7 inch |
| løsning | 128×64 |
| aktivt område | 61.41×30.69 mm |
| omrids | 70.9×41.86×2.11 mm |
| overflade | Antiglare |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 2000 : 1 (Min.) |
| vise farver | Mono(Yellow) (1-bit) |
| synsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvens | 105Hz |
| driver ic | TAB Built-in SSD1305 |
| signal interface | 8-bit 6800/8080 parallel, SPI, I²C, 22 pins |
| indgangsspænding | 15/2.7V (Typ.)(VCC/VDD) |
| Ansøgning | IA |
