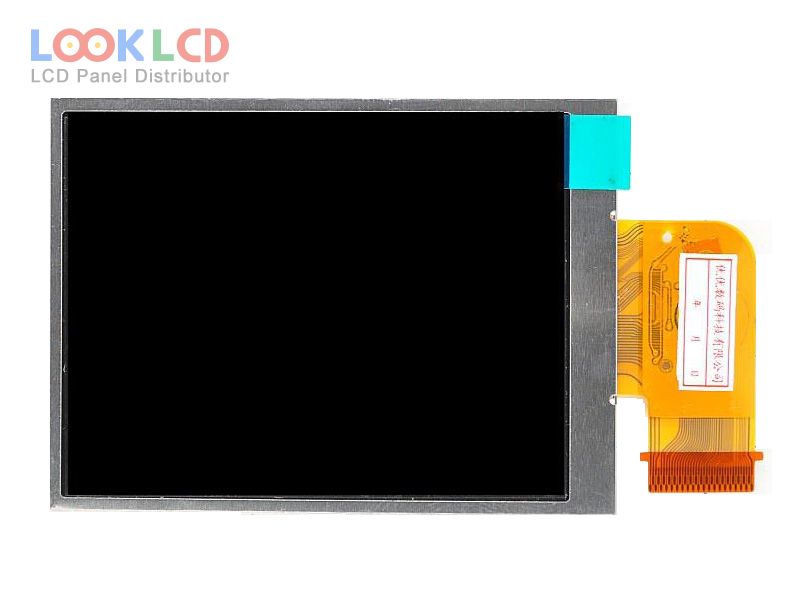

| Varenummer | TM027CDH02 |
| Mærke | Tianma |
| Størrelse | 2.7 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 350:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | TIANMA |
| panel model | TM027CDH02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.7 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 54×40.5 mm |
| omrids | 63.5×46.6 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193140% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 2S1PWLEDWithout Driver |
| signal interface | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | DSC |
| A017CN01 V1 | AUO | 1.7 | 480×240 |
| A025DN01 V9 | AUO | 2.5 | 320×240 |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| LQ025A3DD01 | SHARP | 2.5 | 480×240 |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LQ035NC111 | Innolux | 3.5 | 320×240 |
| LTV350QV-F0E | Samsung | 3.5 | 320×240 |
| PA035XSL | E Ink | 3.5 | 320×234 |
| TM027CDH12 | Tianma | 2.7 | 320×240 |
| UP018D11 | UNIPAC | 1.8 | 528×220(dot) |
