| Varenummer | ST5461B05-1 |
| Mærke | CSOT |
| Størrelse | 55 |
| Ansøgning | LCTV |
| Løsning | 1920×1080 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 4000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | LVDS |
| panel mærke | CSOT |

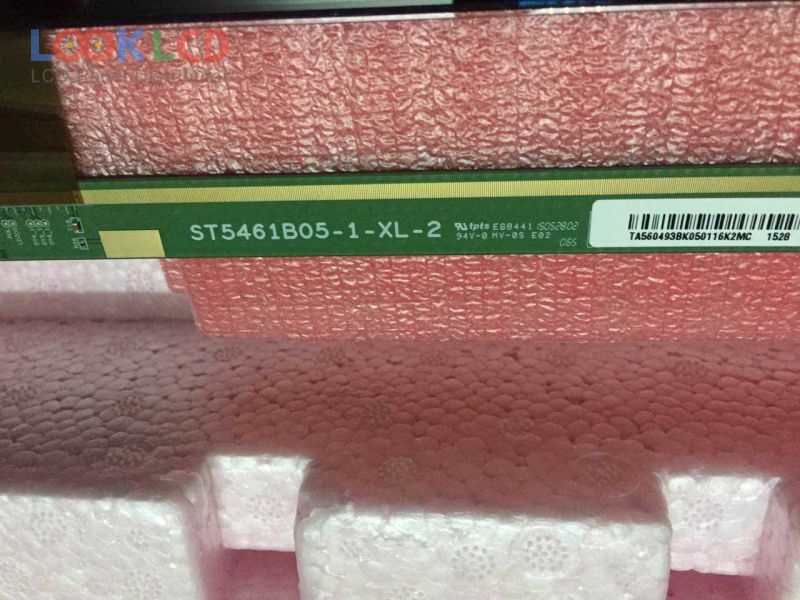

| panel model | ST5461B05-1 |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 55 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | HVA, Normally Black, Transmissive |
| aktivt område | 1209.6×680.4 mm |
| omrids | 1223.6×697.1 mm |
| overflade | Antiglare (Haze 2%), Hard coating (3H) |
| glas dybde | 0.50+0.50 mm |
| transmissivitet | 7.0% (Typ.)(with Polarizer) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193168% |
| responstid | 6.5 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz (60Hz Input) |
| signal interface | LVDS (2 ch, 8-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
