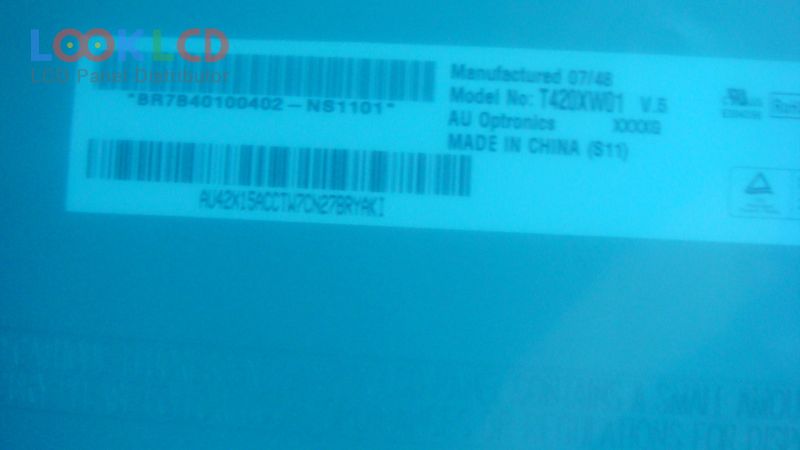

| Varenummer | T420XW01 V5 |
| Mærke | AUO |
| Størrelse | 42 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 1500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | T420XW01 V5 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 42 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | AMVA, Normally Black, Transmissive |
| aktivt område | 930.25×523.01 mm |
| omrids | 983×576 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 1500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 15/5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 20 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
| LC420DUE-FGA3 | LG Display | 42 | 1920×1080 |
| LC420DUE-FGA4 | LG Display | 42 | 1920×1080 |
| LC420EUN-SCV1 | LG Display | 42 | 1920×1080 |
| LC420WUN-SBA1 | LG Display | 42 | 1920×1080 |
| T420HVN02.0 | AUO | 42 | 1920×1080 |
| T420HW07 V0 | AUO | 42 | 1920×1080 |
| T420XW01 V5 | AUO | 42 | 1366×768 |
| T420XW01 V8 | AUO | 42 | 1366×768 |
| T420XW01 V9 | AUO | 42 | 1366×768 |
| V420H2-LE3 | Innolux | 42 | 1920×1080 |
| LC370EUN-SEM1 | LG Display | 36.5 | 1920×1080 |
| LC420DUE-SFR3 | LG Display | 42 | 1920×1080 |
| LC420EUN-SDF1 | LG Display | 42 | 1920×1080 |
| LC550EGG-FHM1 | LG Display | 55 | 3840×2160 |
| LC550EUN-SEF1 | LG Display | 55 | 1920×1080 |
| LTY320AP04 | Samsung | 31.5 | 1366×768 |
| ST3151A05-5 | CSOT | 31.5 | 1366×768 |
| T420HVF04.0 | AUO | 42 | 1920×1080 |
| T650HVD01.0 | AUO | 65 | 1920×1080 |
| V290BJ1-L01 | Innolux | 29.0 | 1366×768 |
