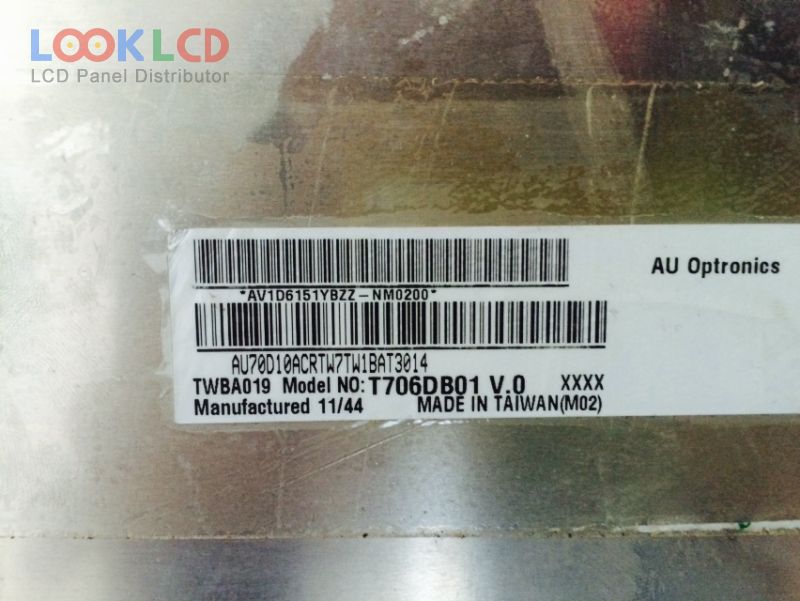

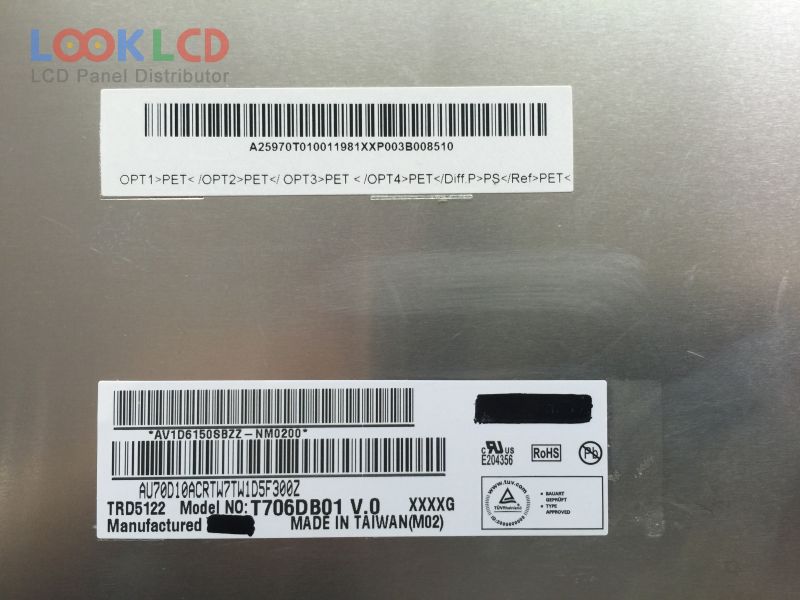

| Varenummer | T706DB01 V0 |
| Mærke | AUO |
| Størrelse | 70.6 |
| Ansøgning | LCTV |
| Løsning | 2560×1080 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 4000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | T706DB01 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 70.6 inch |
| løsning | 2560(RGB)×1080 , CSHD |
| visningstilstand | AMVA3, Normally Black, Transmissive |
| aktivt område | 1651.2×696.6 mm |
| omrids | 1687.2×735.6 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 1.07B (10-bit), CIE193172% |
| responstid | 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (4 ch, 10-bit), 92 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
| T706DB01 V0 | AUO | 70.6 | 2560×1080 |
| LC470EUN-SFF1 | LG Display | 47 | 1920×1080 |
| LC550EUF-PGF1 | LG Display | 55 | 1920×1080 |
| LTA550HJ07 | Samsung | 55 | 1920×1080 |
| LTF550HF01 | Samsung | 55 | 1920×1080 |
| LTY260W2-L06 | Samsung | 26.0 | 1366×768 |
| T315HW07 V0 | AUO | 31.5 | 1920×1080 |
| T460HW04 V5 | AUO | 46 | 1920×1080 |
| T650HVN06.0 | AUO | 65 | 1920×1080 |
| V216B1-L01 | Innolux | 21.6 | 1366×768 |
| V650HP1-PS6 Rev.C1 | Innolux | 65 | 1920×1080 |
