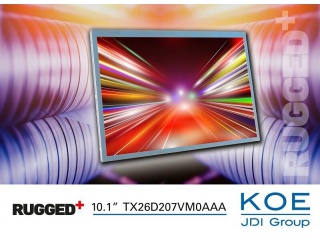

| Varenummer | TX26D207VM0AAA |
| Mærke | KOE |
| Størrelse | 10.1 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 1280×800 |
| Sammensætning | a-Si TFT-LCD , LCM |
| Lysstyrke | |
| CR | 1500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| mærke | KOE |
| diagonal størrelse | 10.1 inch |
| pixel format | 1280(RGB)×800 [WXGA] 149PPI |
| aktivt område | 217.344(H)×135.84(V) mm |
| bezel område | 220.344(H)×138.838(V) mm |
| luminans | 1000 cd/m² (Typ.) |
| visningsretning | Symmetry |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| støtte farve | 16.7M 65% NTSC |
| vægt | 340g (Typ.) |
| billedhastighed | 60Hz |
| interface type | LVDS (1 ch, 8-bit) , 20 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| model | TX26D207VM0AAA |
| type | a-Si TFT-LCD , LCM |
| konfiguration | RGB Vertical Stripe |
| omrids dim. | 231(H)×153.5(V) ×11.07(D) mm |
| behandling | - |
| kontrastforhold | 1500:1 (Typ.) (TM) |
| responstid | 25 (Max.)(Tr+Tf) |
| driftstilstand | IPS, Normally Black, Transmissive |
| lyskilde | WLED , 70K hours , With LED Driver |
| designet til | Industrial Outdoor High Brightness Automotive Display |
| berøringspanel | Without |
