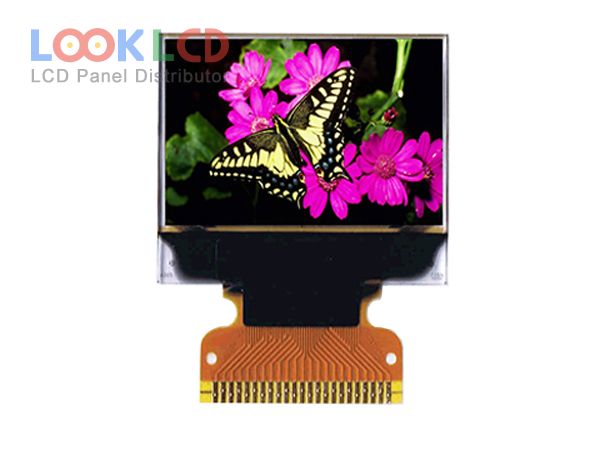

| Varenummer | UG-9664HDDAG01 |
| Mærke | WiseChip |
| Størrelse | 0.95 |
| Ansøgning | IA |
| Løsning | 96×64 |
| Sammensætning | OLED |
| Lysstyrke | 100 |
| CR | 1000:1 |
| Farver | 65K |
| Baggrundsbelysning | self |
| Interface | CPU/SPI |
| panel mærke | WiseChip |
| panel model | UG-9664HDDAG01 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 0.95 inch |
| løsning | 96(RGB)×64 |
| aktivt område | 20.14×13.42 mm |
| omrids | 25.7×22.2×1.6 mm |
| overflade | |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 1000 : 1 (Typ.) |
| vise farver | 65K |
| synsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COG Built-in SSD1331Z |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, 23 pins |
| indgangsspænding | 2.8/2.8/14.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
