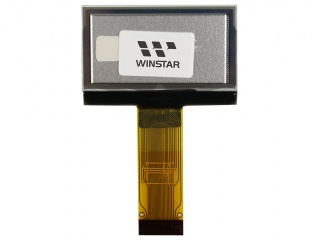

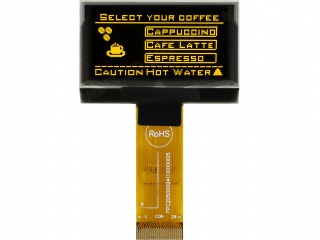

| Varenummer | WEO012864AA |
| Mærke | Winstar |
| Størrelse | 1.54 |
| Ansøgning | Handheld & PDA I |
| Løsning | 128×64 |
| Sammensætning | PM-OLED, OLED |
| Lysstyrke | |
| CR | |
| Farver | Mono(Orange) |
| Baggrundsbelysning | self |
| Interface | 8-bit |
| panel mærke | Winstar |
| panel model | WEO012864AA |
| panelstørrelse | 1.54" |
| paneltype | PM-OLED, OLED |
| løsning | 128×64, 92PPI |
| pixel format | Rectangle |
| udstillingsområde | 35.05(W)×17.51(H) mm |
| bezel åbning | 37.05(W)×19.52(H) mm |
| konturstørrelse | 42.04(W)×23.03(H) ×1.55(D) mm |
| overflade | - |
| synsvinkel | - |
| visningstilstand | - |
| bedste udsigt på | Symmetry |
| responstid | - |
| vise farver | Mono(Orange) |
| lampe type | self |
| frekvens | - |
| berøringsskærm | Without |
| driver ic | COGBuilt-in SSD1309ZC |
| panelvægt | - |
| Ansøgning | Handheld & PDA Instruments & Meters Comm Device Home Appliance Healthcare |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 24 pins FPC |
| indgangsspænding | 3.0/12.5V (Typ.)(VDD/VCC) |
| miljø | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C |
| DLC0154AZG-T | Other | 1.54 | 240×240 |
| H154QN01 V2 | AUO | 1.54 | 240×240 |
| HGS128647-Y-EH-LV | Other | 1.54 | 128×64 |
| LH154Q01-TD01 | LG Display | 1.54 | 240×240 |
| OEL9M0072-B-E | Other | 1.54 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSWMG01 | WiseChip | 1.54 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
