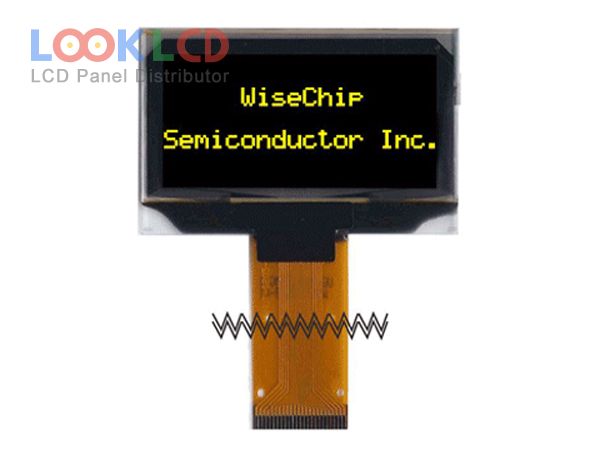

| Varenummer | UG-2864KSYMG01 |
| Mærke | WiseChip |
| Størrelse | 1.54 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | 150 |
| CR | 10000:1 |
| Farver | Mono(Yellow) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | WiseChip |
| panel model | UG-2864KSYMG01 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 1.54 inch |
| løsning | 128×64 |
| aktivt område | 35.052×17.516 mm |
| omrids | 42.04×27.22 mm |
| overflade | |
| lysstyrke | 150 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Typ.) |
| vise farver | Mono(Yellow) |
| synsvinkel | |
| driver ic | Built-in SSD1309 |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| Ansøgning | IA |
