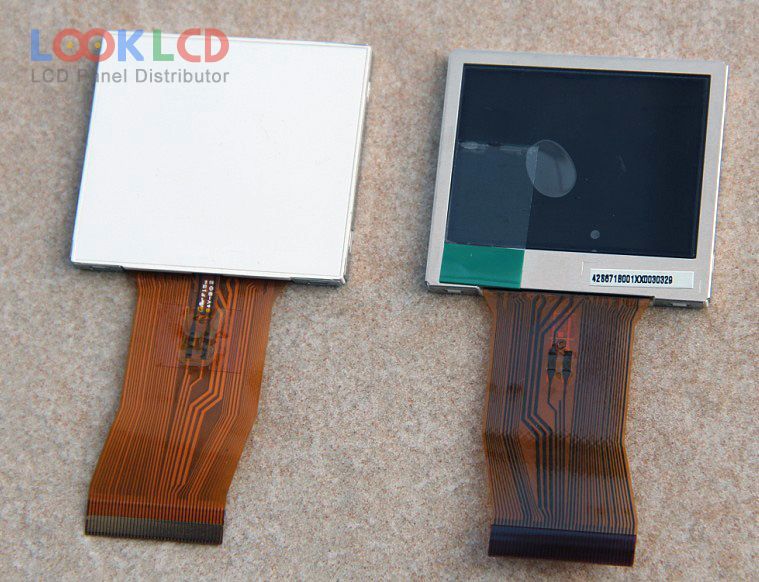

| Varenummer | A017CN01 V1 |
| Mærke | AUO |
| Størrelse | 1.7 |
| Ansøgning | DSC |
| Løsning | 480×240 |
| Sammensætning | LCM |
| Lysstyrke | 280 |
| CR | 300:1 |
| Farver | |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | AUO |
| panel model | A017CN01 V1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 1.7 inch |
| løsning | 480×240 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 34.08×25.56 mm |
| omrids | 41.58×37.26 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 280 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | |
| responstid | 25/30 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S1PWLEDWithout Driver |
| signal interface | Serial RGB (8-bit) + SPI, CCIR656, 40 pins |
| indgangsspænding | 3.0/3.3/0.1V (Typ.)(VCC/AVDD/VCDC) |
| Ansøgning | DSC |
| A015AN03 V0 | AUO | 1.46 | 280×220 |
| A017CN01 V1 | AUO | 1.7 | 480×240 |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| LTV350QV-F05 | Samsung | 3.5 | 320×240 |
| LTV350QV-F07 | Samsung | 3.5 | 320×240 |
| PT035TN23 V.1 | Innolux | 3.5 | 320×240 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TM027CDH12 | Tianma | 2.7 | 320×240 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
