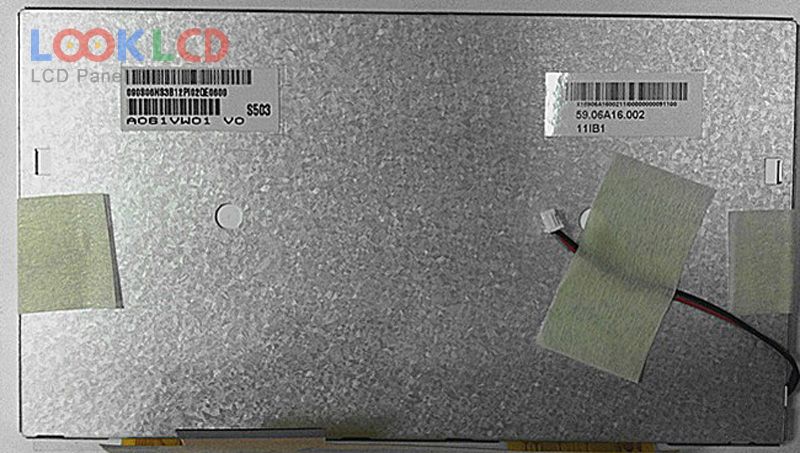

| Varenummer | A061VW01 V0 |
| Mærke | AUO |
| Størrelse | 6.1 |
| Ansøgning | DPF |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 430 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A061VW01 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.1 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 136.2×72 mm |
| omrids | 149×82.9 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 430 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 12/18 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S8PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3/11.5/18.0/-8.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | DPF |
| A104SN03 V0 | AUO | 10.4 | 800×600 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| EJ080NA-04B | Innolux | 8.0 | 1024×768 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
| P64AN2AP08 | E Ink | 6.4 | 320×234 |
| PM102ZY2 | E Ink | 10.2 | 1024×600 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM080SV-04L01 | SANYO | 8.0 | 800×600 |
