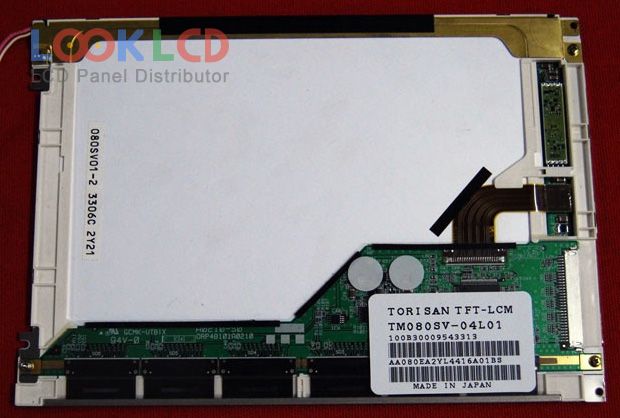

| Varenummer | TM080SV-04L01 |
| Mærke | SANYO |
| Størrelse | 8.0 |
| Ansøgning | DPF |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 150 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | TORISAN |
| panel model | TM080SV-04L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 163.2×122.4 mm |
| omrids | 201.4×140.3 mm |
| overflade | Antiglare |
| lysstyrke | 150 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193152% |
| responstid | 35/15 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/30/10 (Min.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DPF |
