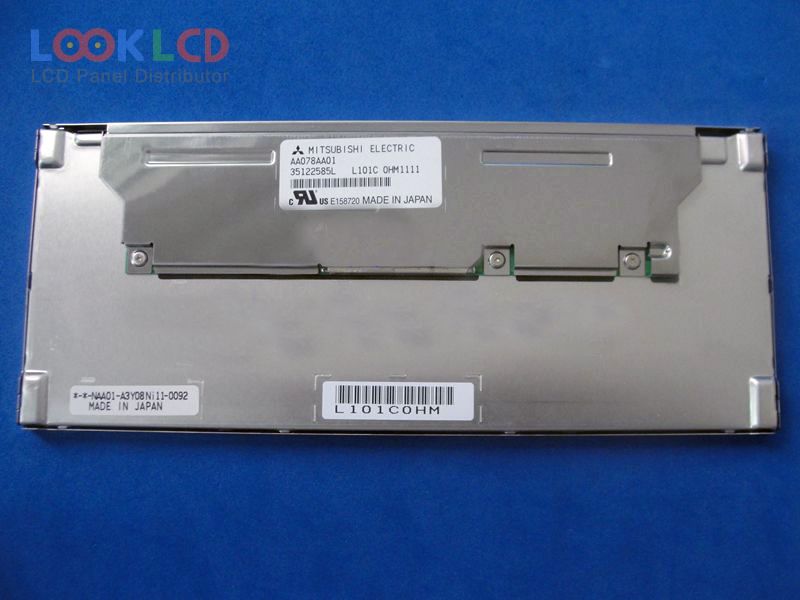

| Varenummer | AA078AA01 |
| Mærke | Mitsubishi |
| Størrelse | 7.8 |
| Ansøgning | IA |
| Løsning | 800×300 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 1000:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | Mitsubishi |
| panel model | AA078AA01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.8 inch(8/15 cut of 8.5") |
| løsning | 800(RGB)×300 |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 184.8×69.3 mm |
| omrids | 207×86 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| responstid | 12/12 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6/8-bit) |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | IA |
