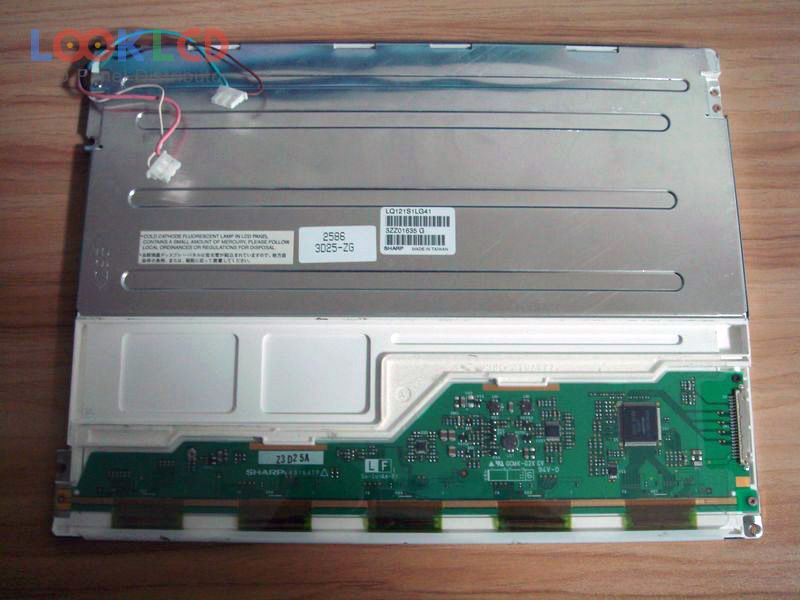

| Varenummer | LQ121S1LG41 |
| Mærke | SHARP |
| Størrelse | 12.1 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 370 |
| CR | 450:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ121S1LG41 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 246×184.5 mm |
| omrids | 276×209×11 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 370 cd/m² (Typ.) |
| kontrastforhold | 450:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 10/30 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3/5.0V (Typ.) |
| Ansøgning | IA |
| LQ121K1LG53 | SHARP | 12.1 | 1280×800 |
| LQ121S1DC71 | SHARP | 12.1 | 800×600 |
| LQ121S1DG11 | SHARP | 12.1 | 800×600 |
| LQ121S1DG21 | SHARP | 12.1 | 800×600 |
| LQ121S1DG31 | SHARP | 12.1 | 800×600 |
| LQ121S1DG42 | SHARP | 12.1 | 800×600 |
| LQ121S1DG43 | SHARP | 12.1 | 800×600 |
| LQ121S1LG61 | SHARP | 12.1 | 800×600 |
| LQ121S1LG79 | SHARP | 12.1 | 800×600 |
| LQ121X3LH01 | SHARP | 12.1 | 1024×768 |
| LM100SS1T522 | SHARP | 10.0 | 800×600 |
| LQ025Q3DW01 | SHARP | 2.5 | 320×240 |
| LQ121S1LG44 | SHARP | 12.1 | 800×600 |
| NL6448BC33-20 | NLT | 10.4 | 640×480 |
| NL8060BC26-27 | NLT | 10.4 | 800×600 |
| NL8060BC31-17 | NLT | 12.1 | 800×600 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| PD080SL2 | E Ink | 8.0 | 800×600 |
| SX19V001-Z2A | KOE | 7.5 | 640×480 |
| TM057QDHG02 | Tianma | 5.7 | 640×480 |
