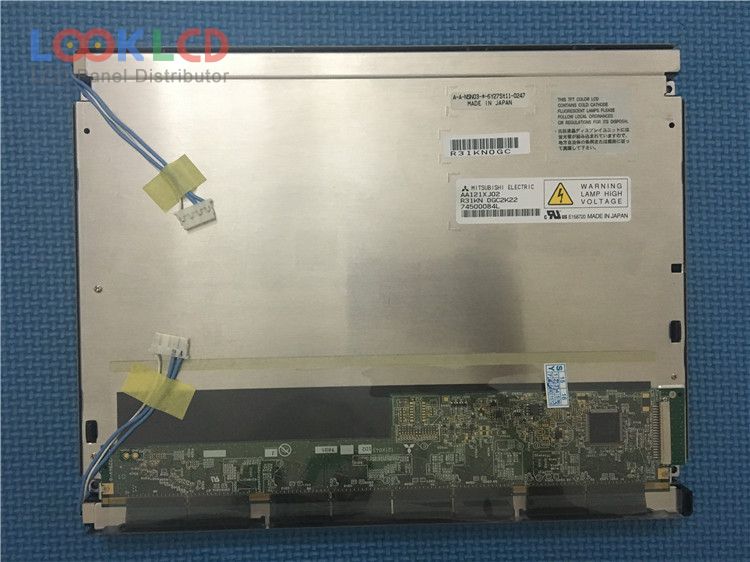

| Varenummer | AA121XJ02 |
| Mærke | Mitsubishi |
| Størrelse | 12.1 |
| Ansøgning | IA |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 1000 |
| CR | 700:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | Mitsubishi |
| panel model | AA121XJ02 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 245.76×184.32 mm |
| omrids | 280×219×18.3 mm |
| overflade | Hard coating (2H), Antireflection |
| lysstyrke | 1000 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| responstid | 6/19 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/75/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
