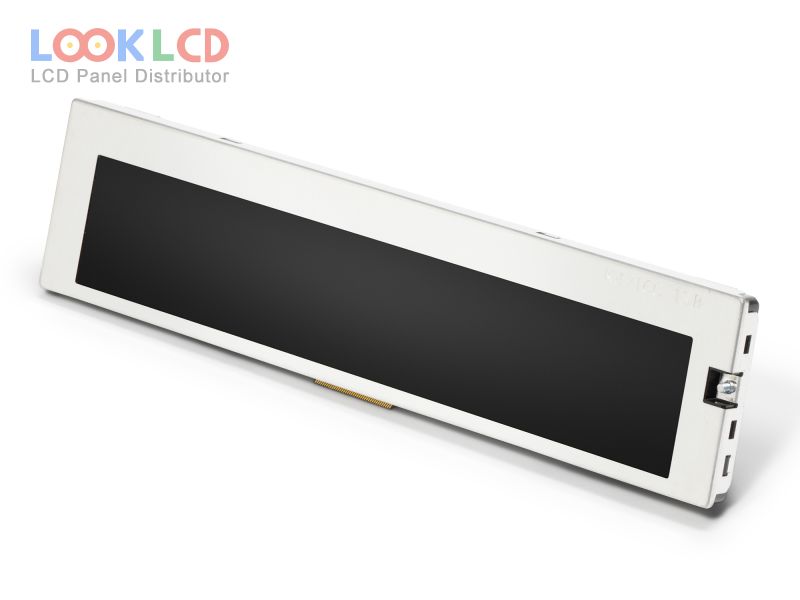

| Varenummer | LQ060B3DW01 |
| Mærke | SHARP |
| Størrelse | 6.0 |
| Ansøgning | IA |
| Løsning | 768×128 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ060B3DW01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.0 inch |
| løsning | 768×128(RGB) |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 149.76×24.96 mm |
| omrids | 173.8×42.1 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 5/10 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 4S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
