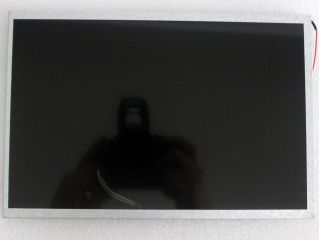

| Varenummer | AM-1280800NGTZQW-17H |
| Mærke | AMPIRE |
| Størrelse | 10.1 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 1280×800 |
| Sammensætning | a-Si TFT-LCD , LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | 7S6P |
| Interface | LVDS |
| panel mærke | AMPIRE |
| panelstørrelse | 10.1" |
| løsning | 1280(RGB)×800, WXGA, 149PPI |
| udstillingsområde | 216.96(W)×135.6(H) mm |
| konturstørrelse | 231(W)×154.4(H) ×6.2(D) mm |
| lysstyrke | 1500 cd/m² (Typ.) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| bedste udsigt på | Symmetry |
| vise farver | 16.7M 45% NTSC |
| frekvens | 60Hz |
| panelvægt | TBD |
| signal interface | LVDS (1 ch, 8-bit) , 40 pins Connector |
| indgangsspænding | 3.3V (Typ.) |
| miljø | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| panel model | AM-1280800NGTZQW-17H |
| paneltype | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel åbning | 220.76(W)×140.4(H) mm |
| overflade | Hard coating |
| kontrastforhold | 800:1 (Typ.) (TM) |
| visningstilstand | IPS, Normally Black, Transmissive |
| responstid | 25 (Typ.)(Tr+Td) |
| lampe type | 7S6P WLED , 50K hours , Without Driver |
| berøringsskærm | Without |
| Ansøgning | Industrial Outdoor High Brightness |
