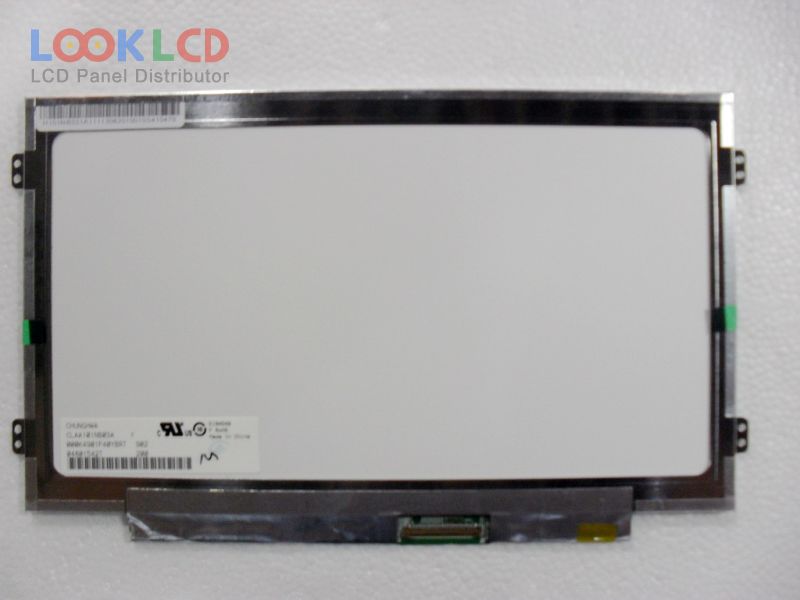

| Varenummer | CLAA101NB03A |
| Mærke | CPT |
| Størrelse | 10.1 |
| Ansøgning | NOPC |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA101NB03A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 222.72×125.28 mm |
| omrids | 243×146.5×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NOPC |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101NC01CW | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| CLAA101WJ06 | CPT | 10.1 | 1366×768 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| CLAA104XA12BW | CPT | 10.4 | 1024×768 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| BT101IW02 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA090NA02CW | CPT | 9.0 | 1024×600 |
| LP101WS1-TLB1 | LG Display | 10.1 | 1024×576 |
| LP116WH1-TLA1 | LG Display | 11.6 | 1366×768 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| N101LGE-L11 | Innolux | 10.1 | 1024×600 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| N116BGE-L42 | Innolux | 11.6 | 1366×768 |
| SVA101WV1(01TA)(A) | SVA-NEC | 10.0 | 1024×576 |
