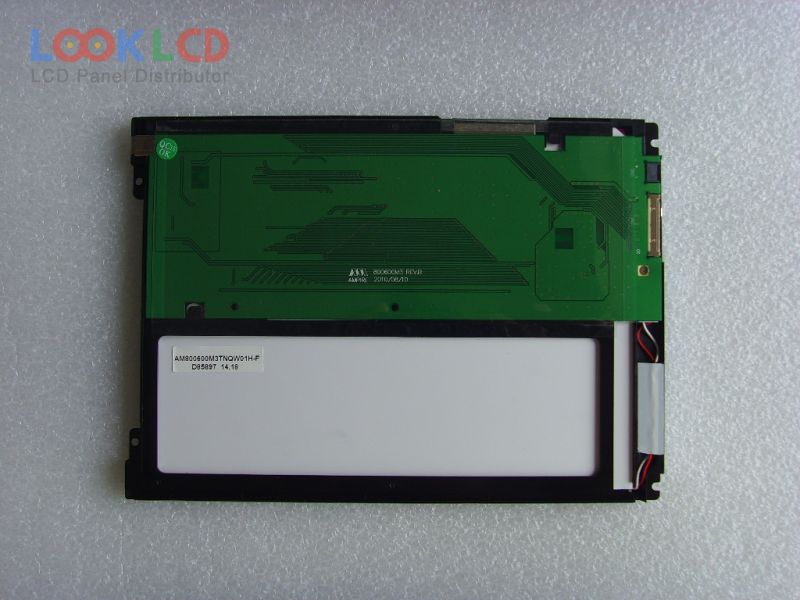

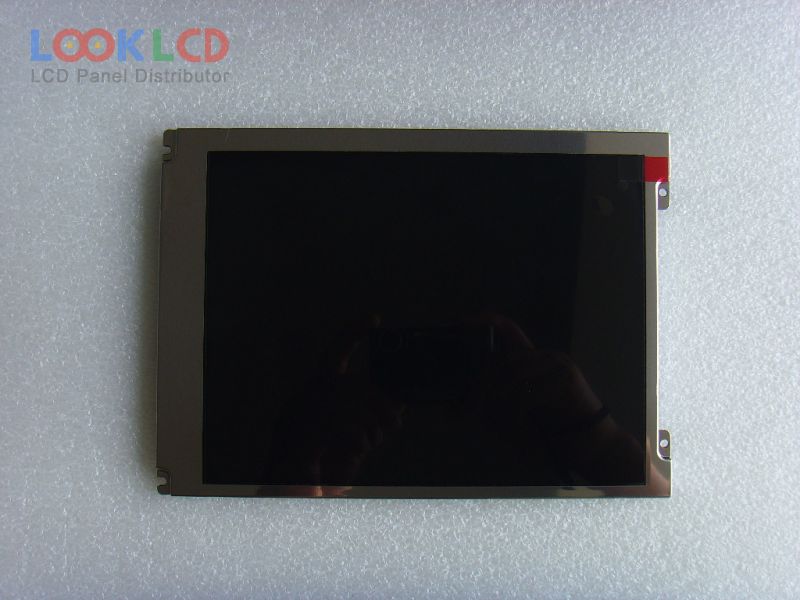

| Varenummer | AM-800600M3TNQW-01H-F |
| Mærke | AMPIRE |
| Størrelse | 8.4 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AMPIRE |
| panel model | AM-800600M3TNQW-01H-F |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 170.4×127.8 mm |
| omrids | 203×145.5×8.3 mm |
| overflade | |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 12S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
