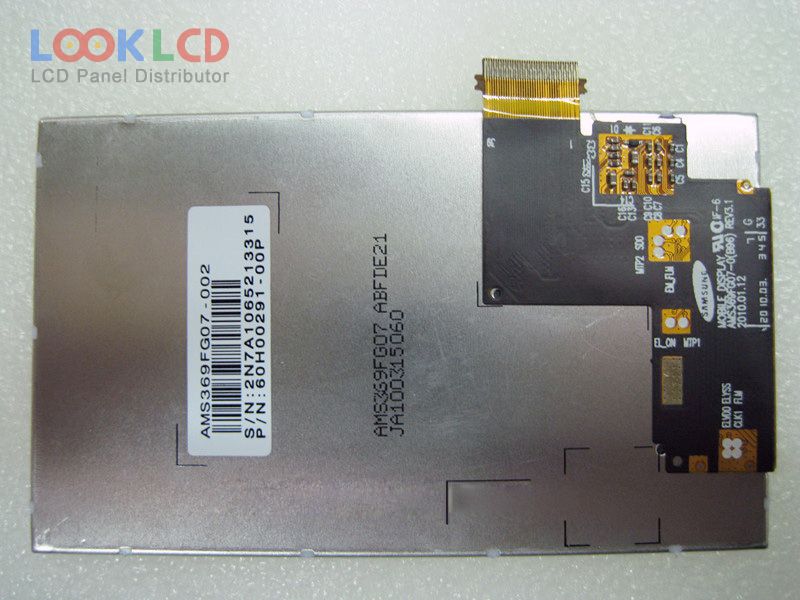

| Varenummer | AMS369FG07-002 |
| Mærke | Samsung |
| Størrelse | 3.7 |
| Ansøgning | MPH |
| Løsning | 480×800 |
| Sammensætning | OLED |
| Lysstyrke | 250 |
| CR | 1000:1 |
| Farver | 262K |
| Baggrundsbelysning | self |
| Interface | TTL |
| panel mærke | SAMSUNG |
| panel model | AMS369FG07-002 |
| paneltype | AM-OLED , OLED |
| panelstørrelse | 3.7 inch |
| løsning | 480RG(BG)×800 , WVGA |
| aktivt område | 48.24×80.4 mm |
| omrids | 53.94×90 mm |
| overflade | Hard coating (2H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 1000 : 1 (Typ.) |
| vise farver | 262K (6-bit), CIE1931106% |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥200)(L/R/U/D) |
| frekvens | 60Hz |
| driver ic | Built-in TL2796 |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| indgangsspænding | 2.8/2.8/4.6/-4.9V (Typ.)(IOVCC/VCI/ELVDD/ELVSS) |
| Ansøgning | MPH |
