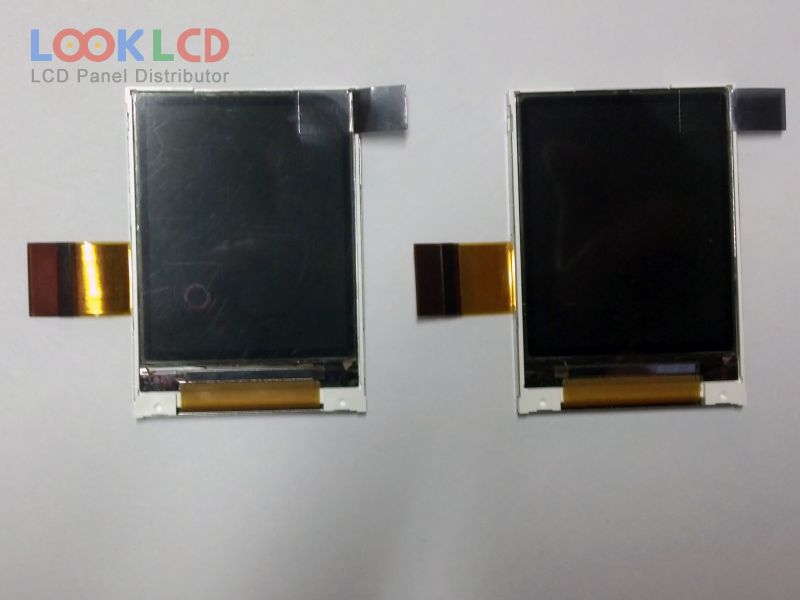

| Varenummer | LQ020B3DC01 |
| Mærke | SHARP |
| Størrelse | 2.0 |
| Ansøgning | MPH |
| Løsning | 176×220 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ020B3DC01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.0 inch |
| løsning | 176(RGB)×220 , QCIF+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 31.68×39.6 mm |
| omrids | 37.8×53×2.9 mm |
| overflade | |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 10/25 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/60/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 39 pins |
| indgangsspænding | 2.85/2.85V (Typ.)(VDDIO/VCI) |
| Ansøgning | MPH |
