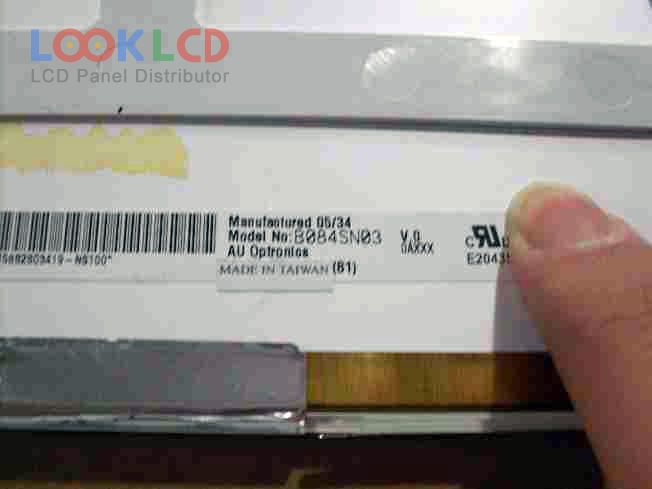

| Varenummer | B084SN03 V0 |
| Mærke | AUO |
| Størrelse | 8.4 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AU Optronics |
| panel model | B084SN03 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 170.4×127.8 mm |
| omrids | 203×142.5 mm |
| overflade | |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 10/25 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/60/40 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
