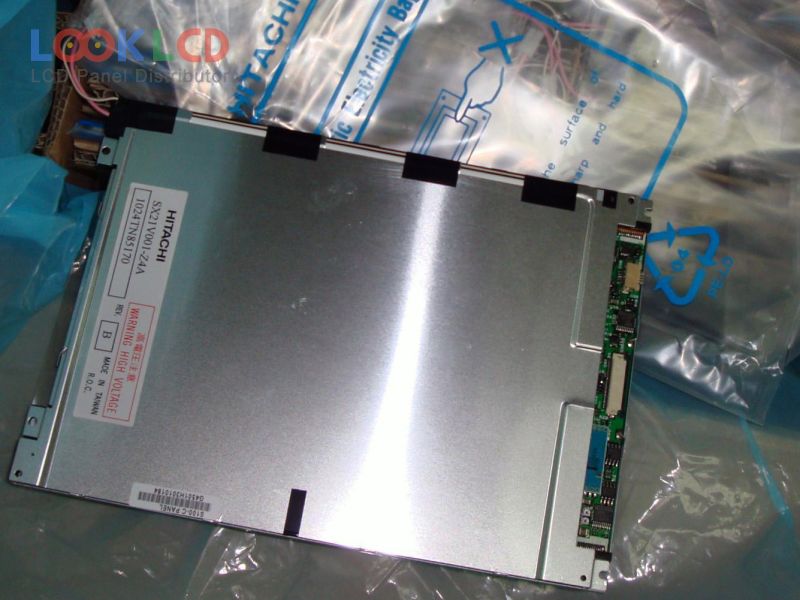

| Varenummer | SX21V001-Z4A |
| Mærke | KOE |
| Størrelse | 8.2 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 60 |
| CR | 50:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | HITACHI |
| panel model | SX21V001-Z4A |
| paneltype | CSTN-LCD , LCM |
| panelstørrelse | 8.2 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | STN, Normally Black, Transmissive |
| aktivt område | 167.02×125.26 mm |
| omrids | 203×142.5×8 mm |
| overflade | Hard coating (2H) |
| lysstyrke | 60 cd/m² (Typ.) |
| kontrastforhold | 50:1 (Typ.) |
| vise farver | Color |
| responstid | 190/160 (Typ.)(Tr/Td) |
| synsvinkel | 40 (Typ.)(CR≥2, Φ2-Φ1)(L/R/U/D) |
| frekvens | 120Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (8-bit), 35 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| BP082WX1-100 | BOE | 8.2 | 1280×800 |
| SX21V001-Z4A | KOE | 8.2 | 640×480 |
| AA104VC02 | Mitsubishi | 10.4 | 640×480 |
| G150XG03 V5 | AUO | 15.0 | 1024×768 |
| HGS128645-Y-EH-LV | Other | 2.7 | 128×64 |
| LQ104V1DG11 | SHARP | 10.4 | 640×480 |
| LQ150X1LW96 | SHARP | 15.0 | 1024×768 |
| LT121AC62000 | TOSHIBA | 12.1 | 1024×768 |
| TX38D18VM2BAA REV.B | KOE | 15.0 | 1024×768 |
| UG-2864ASYPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864KSYMG01 | WiseChip | 1.54 | 128×64 |
| UG-9616TLBBG01 | WiseChip | 0.84 | 96×16 |
