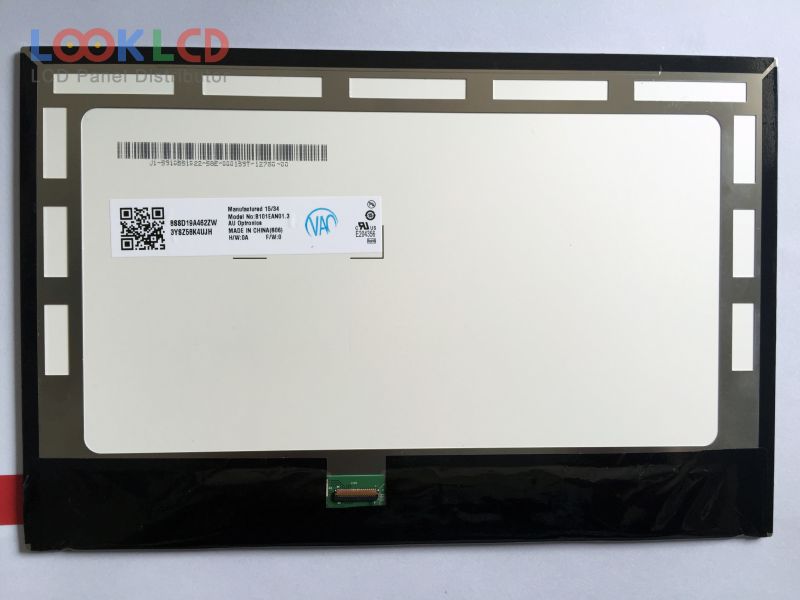

| Varenummer | B101EAN01.3 |
| Mærke | AUO |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | AUO |

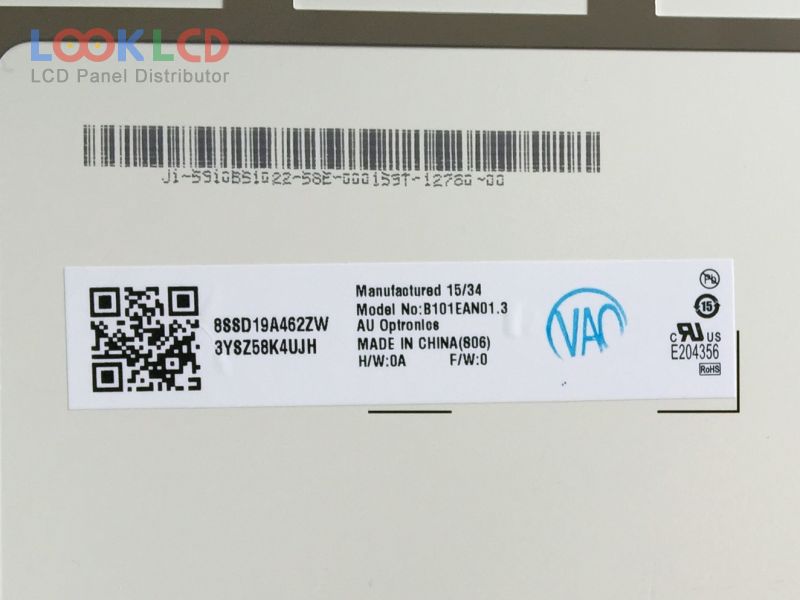

| panel model | B101EAN01.3 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | AHVA, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 228.6×149.2×4.4 mm |
| overflade | Antiglare |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S6PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 39 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
