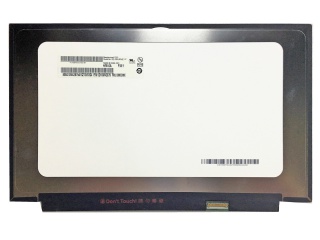

| Varenummer | B140HAN03.2 HW0A |
| Mærke | AUO |
| Størrelse | 14.0 |
| Ansøgning | Laptop |
| Løsning | 1920×1080 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| mærke | AUO |
| model | B140HAN03.2 HW0A |
| diagonal størrelse | 14.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 1920(RGB)×1080 [FHD] 157PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 309.37(H)×174.02(V) mm |
| omrids dim. | 315.1(H)×195.65(V) ×2.4(D) mm |
| bezel område | - |
| behandling | Hard coating (3H) |
| luminans | - |
| kontrastforhold | 800:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10) |
| driftstilstand | AHVA, Normally Black, Transmissive |
| støtte farve | 16.2M |
| lyskilde | WLED , 15K hours , With LED Driver |
| form stil | Slim (PCBA Flat, T≤3.2mm) |
| designet til | Laptop |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B140HAN01.0 | AUO | 14.0 | 1920×1080 |
| B140HAN01.1 | AUO | 14.0 | 1920×1080 |
| B140HAN01.2 | AUO | 14.0 | 1920×1080 |
| B140HAN01.3 | AUO | 14.0 | 1920×1080 |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| HSD140PNW1-B00 | HannStar | 14.0 | 1600×900 |
| LP140WH1-TLD1 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLD6 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| LTN140AT20-701 | Samsung | 14.0 | 1366×768 |
