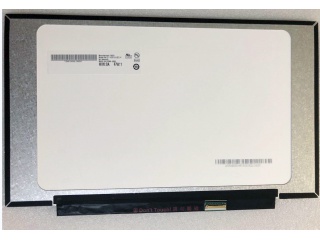

| Varenummer | B140HAN05.4 |
| Mærke | AUO |
| Størrelse | 14.0 |
| Ansøgning | Laptop |
| Løsning | 1920×1080 |
| Sammensætning | LTPS TFT-LCD, LCM |
| Lysstyrke | |
| CR | 1200:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| mærke | AUO |
| model | B140HAN05.4 (AUO543D) |
| diagonal størrelse | 14.0 inch |
| type | LTPS TFT-LCD, LCM |
| pixel format | 1920(RGB)×1080 [FHD] 157PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 309.37(H)×174.02(V) mm |
| omrids dim. | 315.87(H)×196.48(V) ×3(D) mm |
| bezel område | - |
| behandling | Antiglare, Hard coating (3H) |
| luminans | 400 cd/m² (Typ.) |
| kontrastforhold | 1200:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| driftstilstand | AHVA, Normally Black, Transmissive |
| støtte farve | 262K NTSC |
| lyskilde | WLED , 15K hours , With LED Driver |
| form stil | Slim (PCBA Flat, T≤3.2mm) |
| designet til | Laptop |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
