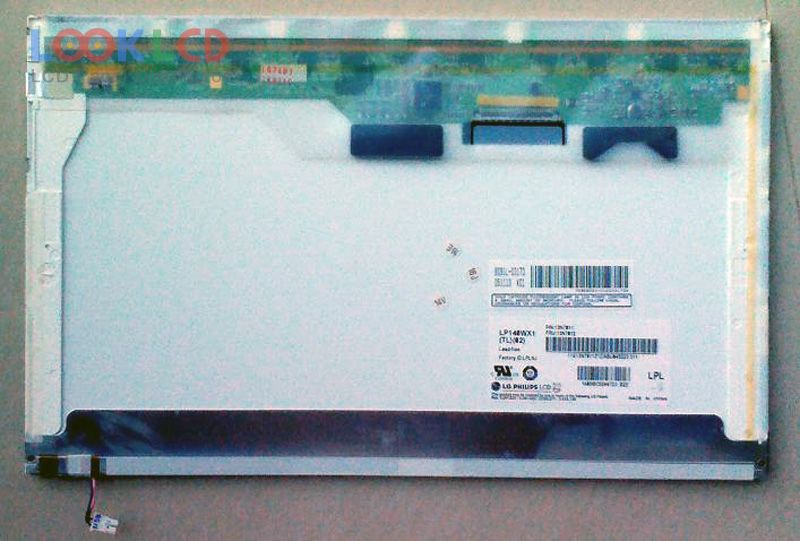

| Varenummer | LP140WX1-TL02 |
| Mærke | LG Display |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LP140WX1-TL02 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 305.28×183.168 mm |
| omrids | 320×199×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 6/19 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
