| Varenummer | B140RTN01.0 |
| Mærke | AUO |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1600×900 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B140RTN01.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1600(RGB)×900 , HD+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.6×174.15 mm |
| omrids | 320.65×198.7×3.4 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193172% |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |

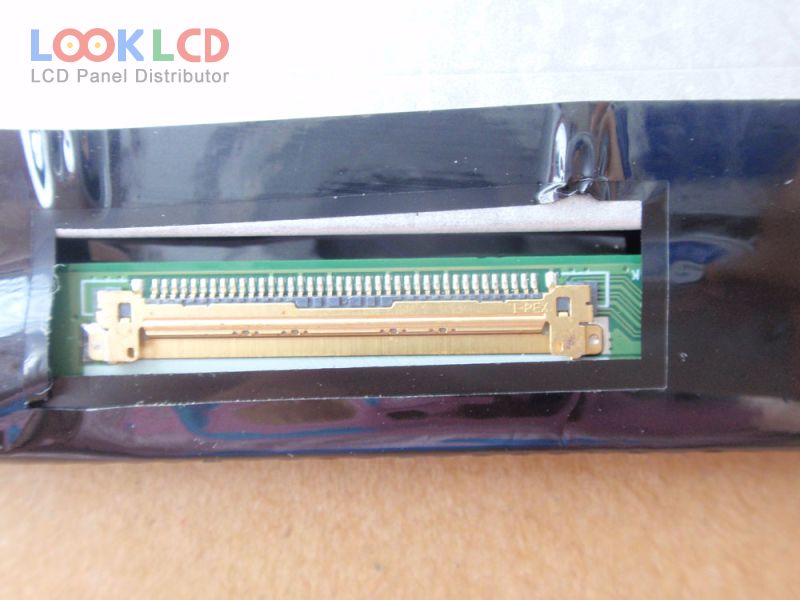

| signal interface | LVDS (2 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
