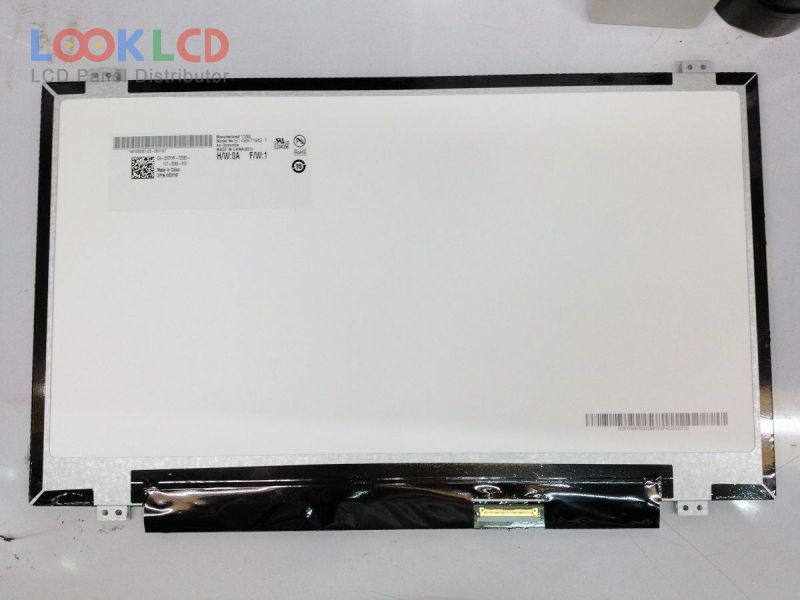

| Varenummer | B140RTN02.1 |
| Mærke | AUO |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1600×900 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B140RTN02.1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1600(RGB)×900 , HD+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.6×174.15 mm |
| omrids | 320.4×205.1×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 8 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B140RTN01.0 | AUO | 14.0 | 1600×900 |
| B140RTN02.1 | AUO | 14.0 | 1600×900 |
| B140RTN02.3 | AUO | 14.0 | 1600×900 |
| B140RTN03.0 | AUO | 14.0 | 1600×900 |
| B140RW01 V0 | AUO | 14.0 | 1600×900 |
| B140RW01 V2 | AUO | 14.0 | 1600×900 |
| B140RW02 V0 | AUO | 14.0 | 1600×900 |
| B140RW02 V1 | AUO | 14.0 | 1600×900 |
| B140RW02 V2 | AUO | 14.0 | 1600×900 |
| B140RW03 V1 | AUO | 14.0 | 1600×900 |
| B154SW02 V0 | AUO | 15.4 | 1680×1050 |
| B154SW02 V3 | AUO | 15.4 | 1680×1050 |
| B156XW04 V7 | AUO | 15.6 | 1366×768 |
| B170PW01 V1 | AUO | 17.0 | 1440×900 |
| LP140WH1-TLD2 | LG Display | 14.0 | 1366×768 |
| LP154WX4-TLC5 | LG Display | 15.4 | 1280×800 |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LTN141XB-L04 | Samsung | 14.1 | 1024×768 |
| LTN150U2-L02 | Samsung | 15.0 | 1600×1200 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
