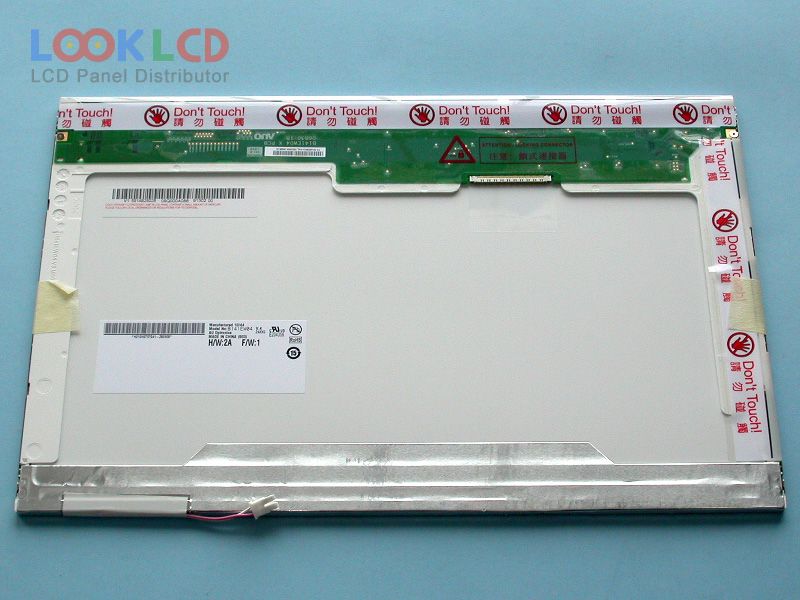

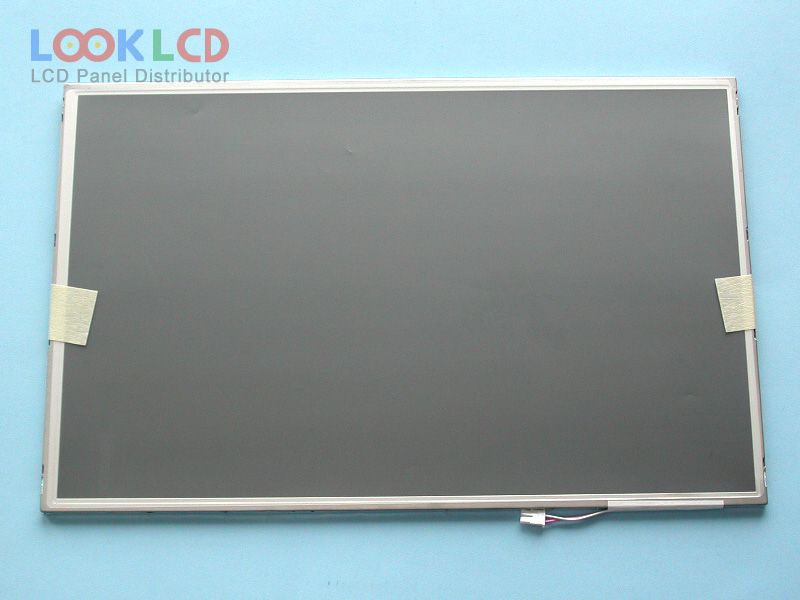

| Varenummer | B141EW04 V4 |
| Mærke | AUO |
| Størrelse | 14.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B141EW04 V4 18 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 303.36×189.6 mm |
| omrids | 319.5×205.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 5/11 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B141EW01 V3 | AUO | 14.1 | 1280×800 |
| B141EW02 V3 | AUO | 14.1 | 1280×800 |
| B141EW03 V3 | AUO | 14.1 | 1280×800 |
| B141EW04 V0 | AUO | 14.1 | 1280×800 |
| B141EW04 V4 | AUO | 14.1 | 1280×800 |
| B141EW04 V5 | AUO | 14.1 | 1280×800 |
| B141EW05 V2 | AUO | 14.1 | 1280×800 |
| B141EW05 V3 | AUO | 14.1 | 1280×800 |
| B141EW05 V4 | AUO | 14.1 | 1280×800 |
| B141EW05 V5 | AUO | 14.1 | 1280×800 |
| B140XTN02.4 | AUO | 14.0 | 1366×768 |
| B156HW02 V1 | AUO | 15.6 | 1920×1080 |
| LP150E07-A2 | LG Display | 15.0 | 1400×1050 |
| LP154WE2-TLA3 | LG Display | 15.4 | 1680×1050 |
| LP156WHU-TPG1 | LG Display | 15.6 | 1366×768 |
| LQ170M1LA4B | SHARP | 17.0 | 1920×1200 |
| LTN140AT28-W01 | Samsung | 14.0 | 1366×768 |
| LTN154U1-L03 | Samsung | 15.4 | 1920×1200 |
| N141C3-L04 | Innolux | 14.1 | 1440×900 |
| QD141X1LH12 Rev.A | QDI | 14.1 | 1024×768 |
